PT00A-20-24P
-
Amphenol Industrial Operations
-
Circular Connectors

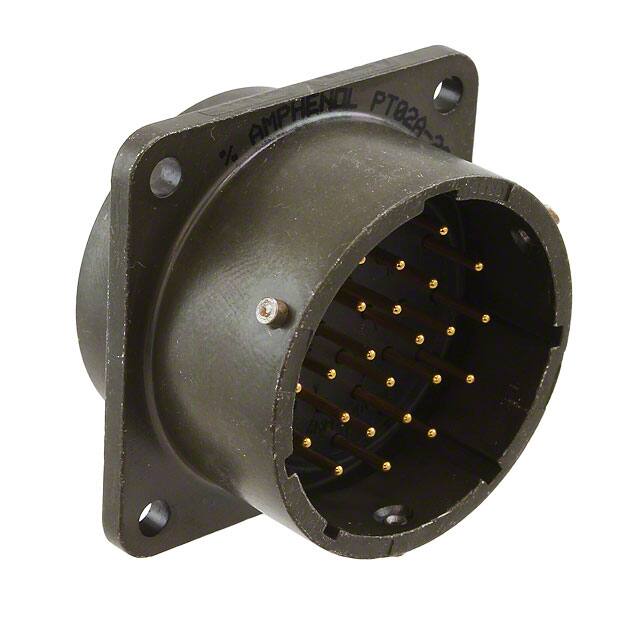

- AMPHENOL PT00A20-24P Circular Connector, PT Series, MIL-DTL-26482 Series I Equivalent, Wall Mount Receptacle, 24
Date Sheet
在庫數 9
小計金額 $0.00000
仕様 よくある質問
- Factory Lead Time：16 Weeks
- Mounting Type：Panel Mount
- Mount：Flanges, Panel, Wall
- Mounting Feature：Flange
- Shell Material：Aluminum
- Insert Material：Neoprene
- Body Material：Aluminium
- Backshell Material, Plating：Aluminum, Olive Drab Cadmium
- Contact Finish Mating：Gold
- Contact Materials：Copper Alloy
- Published：2016
- Series：MIL-DTL-26482 Series I, PT
- Packaging：Bulk
- Operating Temperature：-55°C~125°C
- Part Status：Active
- Moisture Sensitivity Level (MSL)：1 (Unlimited)
- Termination：Solder Cup
- Connector Type：Receptacle, Male Pins
- Number of Positions：24
- Color：Olive Drab
- Applications：Aerospace, Industrial, Instrumentation, Mass Transit, Military
- Gender：Receptacle
- Additional Feature：STANDARD: MIL-C-26482, POLARIZATION AVAILABLE
- Fastening Type：Bayonet Lock
- MIL Conformance：YES
- DIN Conformance：NO
- IEC Conformance：NO
- Filter Feature：NO
- Mixed Contacts：NO
- Option：GENERAL PURPOSE
- Total Number of Contacts：24
- Orientation：N (Normal)
- Shielding：Unshielded
- Current Rating：7.5A
- Military Standard：MIL-DTL-26482
- Shell Finish：Olive Drab Chromate over Cadmium
- Shell Size - Insert：20-24
- Voltage - Rated AC：600V
- Approval Agency：UL
- Contact Gender：Male
- Empty Shell：NO
- Backshell Type：SOLID
- Contact Style：Pin
- Environmental Characteristics：CORROSION/ENVIRONMENT/MOISTURE RESISTANT
- Body Plating：Cadmium
- Features：Backshell
- Diameter：33.8mm
- RoHS Status：Non-RoHS Compliant
- Radiation Hardening：No
- REACH SVHC：No SVHC
