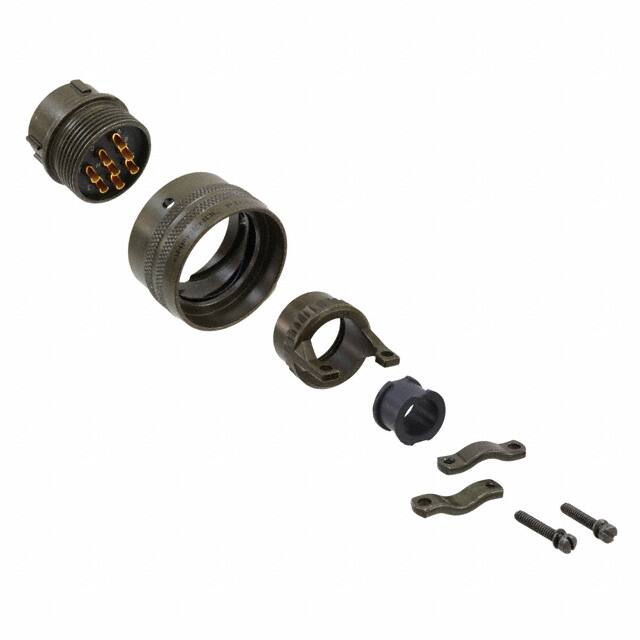

MS3111E16-8S

在庫數 47

小計金額 $0.00000

仕様よくある質問

Factory Lead Time：16 Weeks
Mount：Cable, Free Hanging
Mounting Type：Free Hanging (In-Line)
Shell Material：Aluminum
Insert Material：Neoprene
Backshell Material, Plating：Aluminum, Olive Drab Chromate over Cadmium
Contact Finish Mating：Gold
Contact Materials：Copper Alloy
Voltage Rated：1kV
Operating Temperature：-55°C~125°C
Packaging：Bulk
Series：Military, MIL-DTL-26482 Series I, PT
Published：2006
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder Cup
ECCN Code：EAR99
Connector Type：Receptacle, Female Sockets
Number of Positions：8
Color：Olive Drab
Applications：Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military
Fastening Type：Bayonet Lock
MIL Conformance：YES
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Mixed Contacts：NO
Option：GENERAL PURPOSE
Total Number of Contacts：8
Orientation：N (Normal)
Shielding：Unshielded
Ingress Protection：Environment Resistant
Current Rating：13A
Military Standard：MIL-DTL-26482
Shell Finish：Olive Drab Chromate over Cadmium
Shell Size - Insert：16-8
Mating Information：MULTIPLE MATING PARTS AVAILABLE
Contact Gender：Female
Empty Shell：NO
Backshell Type：SOLID
Contact Style：Socket
Plating：Cadmium, Chromate
Wire Gauge (Max)：22 AWG
Wire Gauge (Min)：16 AWG
Features：Backshell
Radiation Hardening：No
RoHS Status：Non-RoHS Compliant
Ratings：Environment Resistant
