MS3126E14-19S

Amphenol Industrial Operations
Circular Connectors
Circular MIL Spec Connector JAM NUT RECPT SKT CRIMP 19P SZ 20
Date Sheet

在庫數 2317

1+： $121.05543
10+： $114.20324
100+： $107.73890
500+： $101.64048
1000+： $95.88724

小計金額 $121.05543

仕様よくある質問

Factory Lead Time：16 Weeks
Mounting Type：Free Hanging (In-Line)
Shell Material：Aluminum
Insert Material：Neoprene
Body Material：Aluminium
Backshell Material, Plating：Aluminum, Olive Drab Chromate over Cadmium
Voltage Rated：600V
Contact Materials：Copper Alloy
Contact Finish Mating：Gold
Published：2006
Series：Military, MIL-DTL-26482 Series I, PT
Packaging：Bulk
Operating Temperature：-55°C~125°C
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Crimp
ECCN Code：EAR99
Connector Type：Plug, Female Sockets
Number of Positions：19
Color：Olive Drab
Applications：Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military
Gender：Female
Additional Feature：STANDARD: MIL-C-26482, COMPATIBLE CONTACT: M39029/32-259, POLARIZATION AVAILABLE
HTS Code：8536.69.40.20
Fastening Type：Bayonet Lock
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Mixed Contacts：NO
Option：GENERAL PURPOSE
Current Rating (Amps)：7.5A
Orientation：N (Normal)
Shielding：Unshielded
Ingress Protection：Environment Resistant
Military Standard：MIL-DTL-26482
Shell Finish：Olive Drab Chromate over Cadmium
Shell Size - Insert：14-19
Number of Contacts：19
Mating Information：MULTIPLE MATING PARTS AVAILABLE
Empty Shell：NO
Backshell Type：SOLID
Contact Style：Socket
Plating：Cadmium, Chromate
Wire Gauge (Max)：24 AWG
Wire Gauge (Min)：20 AWG
Features：Backshell, Coupling Nut
RoHS Status：Non-RoHS Compliant
Radiation Hardening：No
REACH SVHC：No SVHC
Ratings：Environment Resistant

在庫數 2317

1+： $121.05543
10+： $114.20324
100+： $107.73890
500+： $101.64048
1000+： $95.88724

小計金額 $121.05543

類似スペック製品

MS3126E14-19S Amphenol Industrial Operations
最低価格$121.055432 在庫數 2317
MS3126F14-19SW Amphenol Industrial Operations
最低価格$61.2960273 在庫數 27

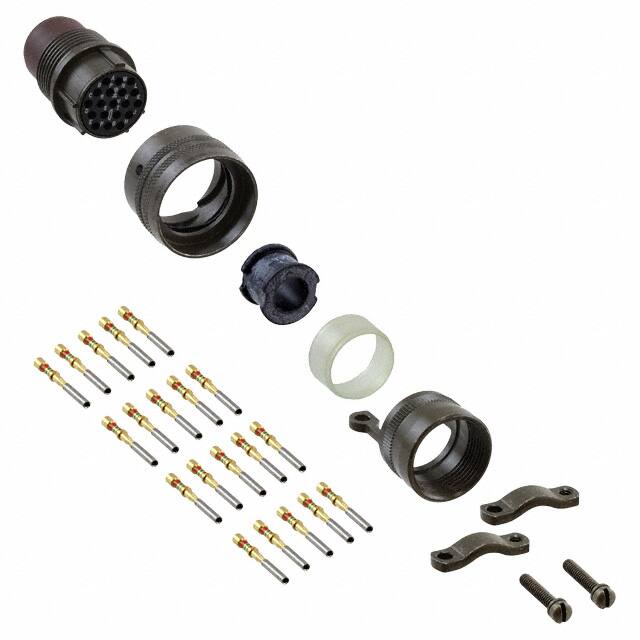

PT06SE-14-19S Amphenol Industrial Operations
