画像はあくまで参考です。

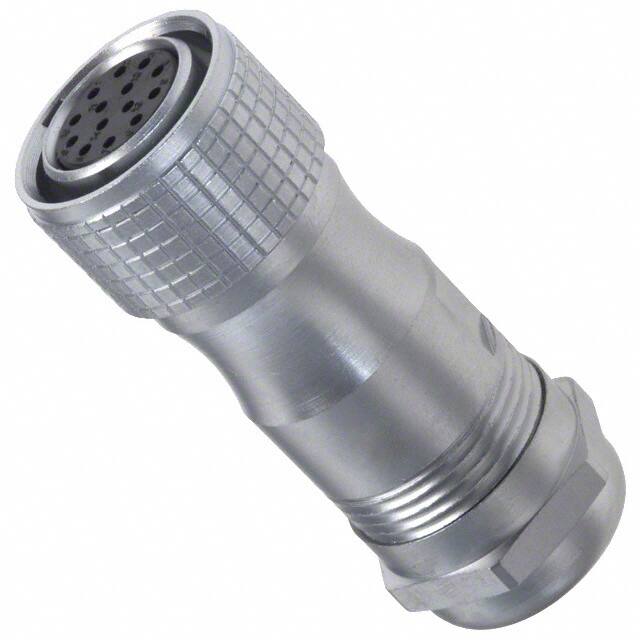

APSFSD6E2
-
Amphenol Industrial Operations
-
Circular Connectors
- CONN PLUG 18MM 5POS IP67 W/SCKT
Date Sheet
在庫數 31
小計金額 $0.00000
仕様 よくある質問
- Factory Lead Time：12 Weeks
- Mount：Free Hanging
- Mounting Type：Free Hanging (In-Line)
- Operating Temperature：-40°C~100°C
- Packaging：Bulk
- Series：Amphe - PPM® Sealed
- Published：2011
- Part Status：Active
- Moisture Sensitivity Level (MSL)：Not Applicable
- Termination：Solder Cup
- Connector Type：Plug, Female Sockets
- Number of Positions：5
- Color：Silver
- Applications：Communication Systems, Instrumentation, Medical, Testing Equipment
- Gender：Male
- Additional Feature：STANDARD: IEC 61984, UL 94V-0
- Fastening Type：Push-Pull
- MIL Conformance：NO
- DIN Conformance：NO
- IEC Conformance：YES
- Filter Feature：NO
- Mixed Contacts：NO
- Option：GENERAL PURPOSE
- Current Rating (Amps)：5A 10A
- Total Number of Contacts：5
- Ingress Protection：IP67 - Dust Tight, Waterproof
- Reach Compliance Code：unknown
- Current Rating：5A
- Shell Finish：Nickel
- Shell Size - Insert：F
- Mating Information：MULTIPLE MATING PARTS AVAILABLE
- Contact Gender：Female
- Empty Shell：NO
- Backshell Type：SOLID
- Coupling Type：SNAP
- Features：Backshell
- Material Flammability Rating：UL94 V-0
- RoHS Status：RoHS Compliant
- Lead Free：Lead Free
- Ratings：Dust Tight, IP67, Waterproof
