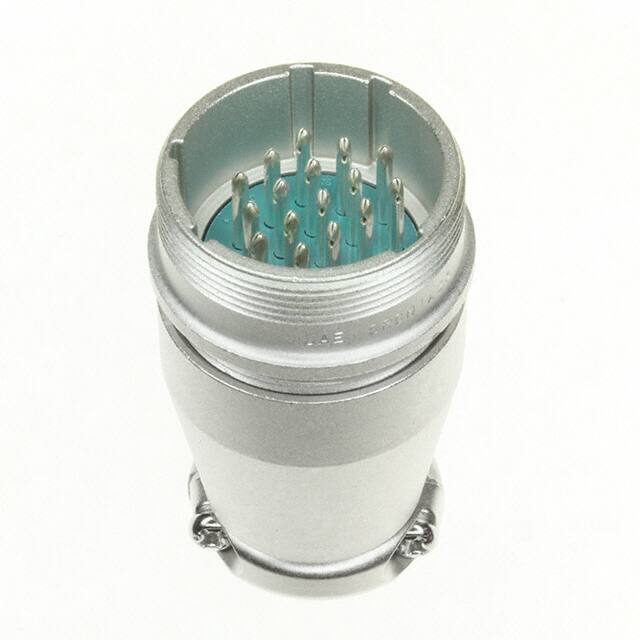

SRCN1A25-16P

在庫數 100000

小計金額 $11.13844

仕様よくある質問

Factory Lead Time：14 Weeks
Mount：Free Hanging
Mounting Type：Free Hanging (In-Line)
Shell Material：Aluminum Alloy
Insert Material：Plastic
Body Material：Aluminium
Backshell Material, Plating：Aluminum Alloy, Nickel
Contact Finish Mating：Silver
Contact Materials：Copper Alloy
Voltage Rated：250VAC 350VDC
Operating Temperature：-25°C~85°C
Packaging：Bulk
Series：SRCN
Published：2007
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder Cup
Connector Type：Receptacle, Male Pins
Number of Positions：16
Applications：Communication Systems, Telecommunications, Test Equipment & Measurement
Fastening Type：Threaded
Orientation：N (Normal)
Current Rating：10A
Shell Finish：Nickel
Shell Size - Insert：25-16
Cable Opening：0.669 (17.00mm)
Features：Backshell, Cable Clamp
Material Flammability Rating：UL94 V-0
REACH SVHC：Unknown
RoHS Status：RoHS Compliant
Lead Free：Lead Free
