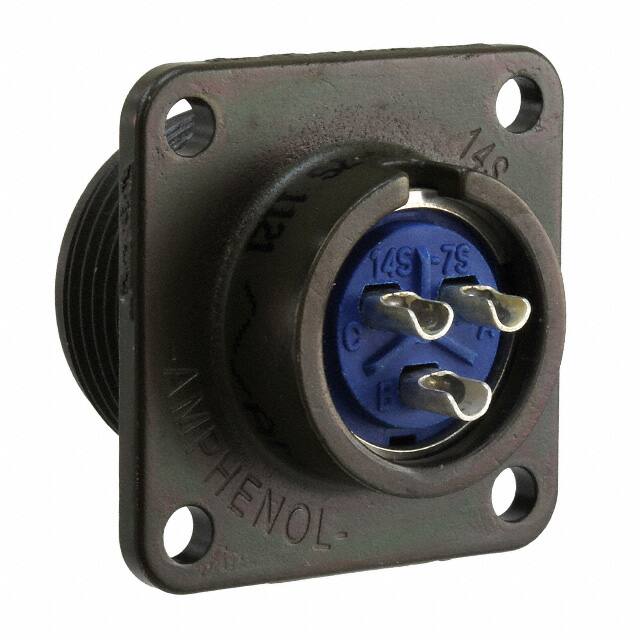

MS3102R14S-7PX

在庫數 45

小計金額 $7.10647

仕様よくある質問

Factory Lead Time：16 Weeks
Mount：Box, Flanges, Panel
Mounting Type：Panel Mount
Mounting Feature：Flange
Shell Material：Aluminum Alloy
Insert Material：Neoprene
Contact Finish Mating：Silver
Contact Materials：Copper Alloy
Voltage Rated：700V
Operating Temperature：-55°C~125°C
Packaging：Bulk
Series：Military, MIL-DTL-5015
Published：2005
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder Cup
Connector Type：Receptacle, Male Pins
Number of Positions：3
Color：Olive Drab
Applications：Marine, Military
Gender：Female
Additional Feature：STANDARD: MIL-C-5015, COMPATIBLE CONTACTS: 10-40569; 10-40599
Fastening Type：Threaded
MIL Conformance：YES
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Mixed Contacts：NO
Option：GENERAL PURPOSE
Total Number of Contacts：3
Orientation：X
Shielding：Unshielded
Ingress Protection：Environment Resistant
Current Rating：13A
Military Standard：MIL-DTL-5015
Shell Finish：Olive Drab Chromate over Cadmium
Shell Size - Insert：14S-7
Contact Gender：Male
Empty Shell：NO
Backshell Type：SOLID
Plating：Cadmium, Chromate
Wire Gauge (Max)：20 AWG
Wire Gauge (Min)：16 AWG
Cable Opening：0.750 (19.05mm)
Radiation Hardening：No
RoHS Status：Non-RoHS Compliant
Ratings：Environment Resistant
