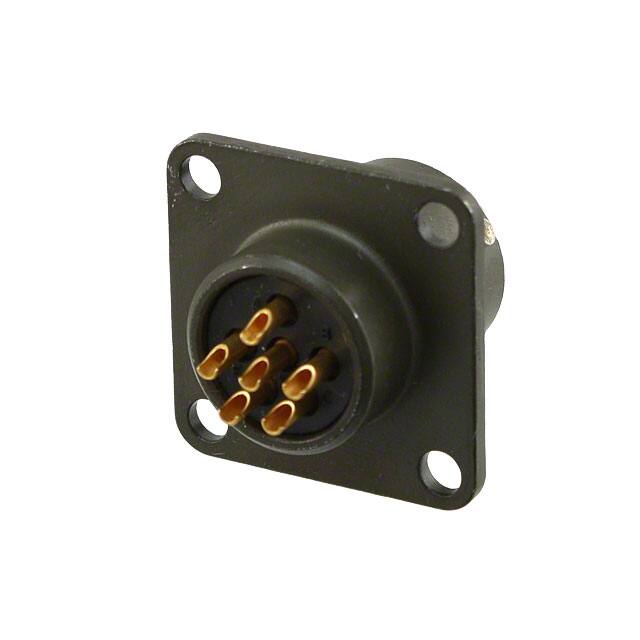

画像はあくまで参考です。
PT01A-10-6P
-
Amphenol Industrial Operations
-
Circular Connectors
- Metal
- AMPHENOL PT01A10-6P Circular Connector, PT Series, MIL-DTL-26482 Series I Equivalent, Cable Mount Receptacle, 6
Date Sheet
在庫數 108
- 1+： $16.68335
- 10+： $15.73901
- 100+： $14.84812
- 500+： $14.00766
- 1000+： $13.21478
小計金額 $16.68335
仕様 よくある質問
- Factory Lead Time：12 Weeks
- Mount：Cable, Flanges, Free Hanging
- Mounting Type：Free Hanging (In-Line)
- Package / Case：Metal
- Shell Material：Aluminum
- Insert Material：Neoprene
- Body Material：Aluminium
- Backshell Material, Plating：Aluminum, Olive Drab Cadmium
- Contact Finish Mating：Gold
- Contact Materials：Copper Alloy
- Voltage Rated：600V
- Operating Temperature：-55°C~125°C
- Packaging：Bulk
- Series：MIL-DTL-26482 Series I, PT
- Published：2006
- Part Status：Active
- Moisture Sensitivity Level (MSL)：1 (Unlimited)
- Termination：Solder Cup
- Connector Type：Receptacle, Male Pins
- Number of Positions：6
- Color：Olive Drab
- Applications：Aerospace, Industrial, Instrumentation, Mass Transit, Military
- Gender：Receptacle
- Fastening Type：Bayonet Lock
- MIL Conformance：YES
- DIN Conformance：NO
- IEC Conformance：NO
- Filter Feature：NO
- Mixed Contacts：NO
- Option：GENERAL PURPOSE
- Total Number of Contacts：6
- Orientation：N (Normal)
- Shielding：Unshielded
- Current Rating：7.5A
- Military Standard：MIL-DTL-26482
- Shell Finish：Olive Drab Chromate over Cadmium
- Shell Size - Insert：10-6
- Voltage - Rated AC：600V
- Approval Agency：UL
- Contact Gender：Male
- Empty Shell：NO
- Backshell Type：SOLID
- Contact Style：Pin
- Environmental Characteristics：CORROSION/ENVIRONMENT/MOISTURE RESISTANT
- Plating：Cadmium, Chromate
- Wire Gauge (Max)：24 AWG
- Wire Gauge (Min)：20 AWG
- Body Plating：Cadmium
- Features：Backshell
- REACH SVHC：No SVHC
- Radiation Hardening：No
- RoHS Status：Non-RoHS Compliant
