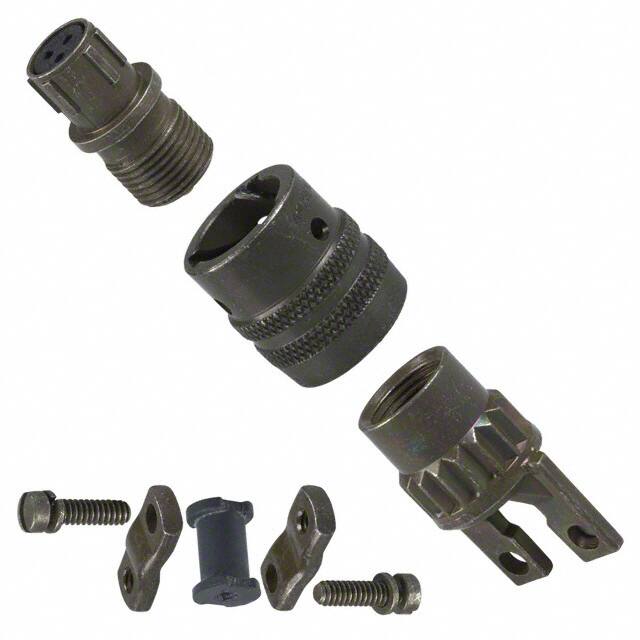

画像はあくまで参考です。
PT06P-8-3S
-
Amphenol Industrial Operations
-
Circular Connectors
- AMPHENOL PT06P8-3S Circular Connector, PT Series, MIL-DTL-26482 Series I Equivalent, Straight Plug, 3, Solder Socket
Date Sheet
在庫數 99
- 1+： $16.45271
- 10+： $15.52142
- 100+： $14.64285
- 500+： $13.81401
- 1000+： $13.03209
小計金額 $16.45271
仕様 よくある質問
- Factory Lead Time：16 Weeks
- Mount：Cable, Free Hanging
- Mounting Type：Free Hanging (In-Line)
- Shell Material：Aluminum
- Insert Material：Neoprene
- Body Material：Aluminium
- Contact Finish Mating：Gold
- Contact Materials：Copper Alloy
- Operating Temperature：-55°C~125°C
- Packaging：Bulk
- Series：MIL-DTL-26482 Series I, PT
- Published：2006
- Part Status：Active
- Moisture Sensitivity Level (MSL)：1 (Unlimited)
- Termination：Solder Cup
- Connector Type：Plug, Female Sockets
- Number of Positions：3
- Color：Olive Drab
- Applications：Aerospace, Industrial, Instrumentation, Mass Transit, Military
- Additional Feature：STANDARD: MIL-C-26482, POLARIZATION AVAILABLE
- Fastening Type：Bayonet Lock
- MIL Conformance：YES
- DIN Conformance：NO
- IEC Conformance：NO
- Filter Feature：NO
- Mixed Contacts：NO
- Option：GENERAL PURPOSE
- Total Number of Contacts：3
- Orientation：N (Normal)
- Shielding：Unshielded
- Current Rating：7.5A
- Military Standard：MIL-DTL-26482
- Shell Finish：Olive Drab Chromate over Cadmium
- Shell Size - Insert：8-3
- Mating Information：MULTIPLE MATING PARTS AVAILABLE
- Contact Gender：Female
- Empty Shell：NO
- Backshell Type：SOLID
- Contact Style：Socket
- Environmental Characteristics：CORROSION/ENVIRONMENT/MOISTURE RESISTANT
- Body Plating：Cadmium
- Features：Coupling Nut, Potted
- Length：38.76mm
- REACH SVHC：No SVHC
- Radiation Hardening：No
- RoHS Status：Non-RoHS Compliant
