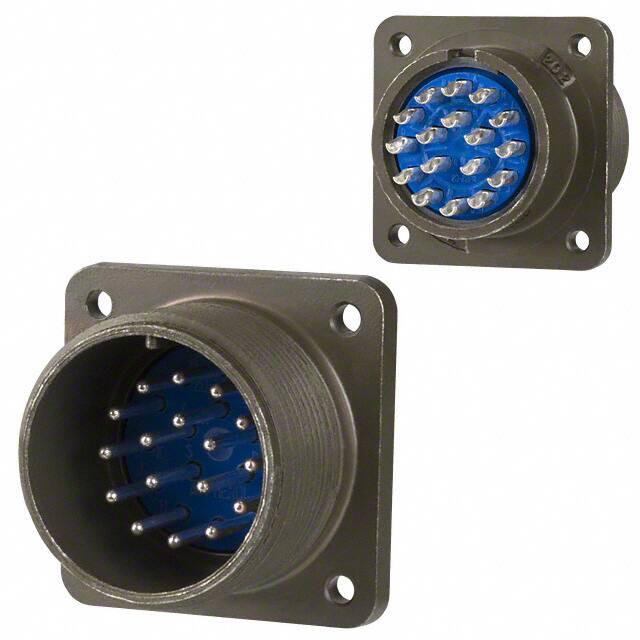

MS3102R20-29P

在庫數 55

小計金額 $31.18861

仕様よくある質問

Factory Lead Time：16 Weeks
Mounting Type：Box, Flanges, Panel
Mounting Feature：Flange
Shell Material：Aluminum Alloy
Insert Material：Neoprene
Body Material：Aluminium
Contact Finish Mating：Silver
Contact Materials：Copper Alloy
Voltage Rated：700V
Operating Temperature：-55°C~125°C
Packaging：Bulk
Series：Military, MIL-DTL-5015
Published：2002
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder Cup
ECCN Code：EAR99
Connector Type：Receptacle, Male Pins
Number of Positions：17
Color：Olive Drab
Applications：Marine, Military
Gender：Male
Additional Feature：STANDARD: MIL-C-5015, COMPATIBLE CONTACTS: 10-40569; 10-40599
HTS Code：8536.69.40.20
Fastening Type：Threaded
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Mixed Contacts：NO
Option：GENERAL PURPOSE
Current Rating (Amps)：13A
Orientation：N (Normal)
Shielding：Unshielded
Ingress Protection：Environment Resistant
Depth：38.1mm
Military Standard：YES
Shell Finish：Olive Drab Chromate over Cadmium
Shell Size - Insert：20-29
Voltage - Rated AC：200V
Number of Contacts：17
Empty Shell：NO
Backshell Type：SOLID
Insulation Resistance：5GOhm
Plating：Cadmium, Chromate
Wire Gauge (Max)：20 AWG
Wire Gauge (Min)：16 AWG
Body Plating：Cadmium
Cable Opening：1.125 (28.58mm)
Length：38.91mm
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：Non-RoHS Compliant
Ratings：Environment Resistant
