MS3102R20-33S

Amphenol Industrial Operations
Circular Connectors

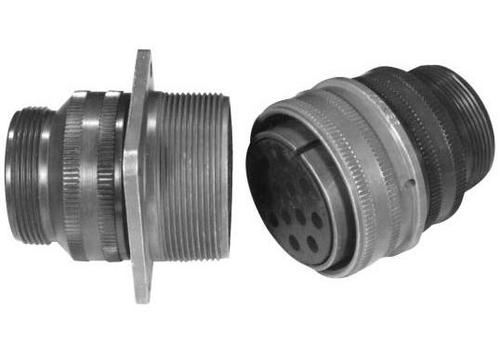

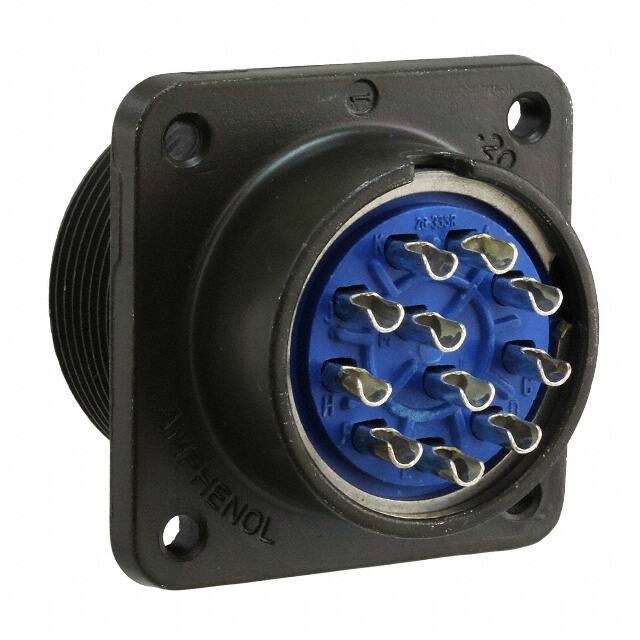

AMPHENOL MS3102R20-33S Circular Connector, MIL-DTL-5015 Series, Box Mount Receptacle, 11, Solder Socket, Threaded, 20-33
Date Sheet

在庫數 19

小計金額 $0.00000

仕様よくある質問

Factory Lead Time：16 Weeks
Contact Plating：Silver, Gold
Mount：Box, Flanges, Panel
Mounting Type：Panel Mount
Mounting Feature：Flange
Shell Material：Aluminum Alloy
Insert Material：Neoprene
Body Material：Aluminium
Contact Finish Mating：Silver
Contact Materials：Copper Alloy
Operating Temperature：-55°C~125°C
Packaging：Bulk
Series：Military, MIL-DTL-5015
Published：2005
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder Cup
ECCN Code：EAR99
Connector Type：Receptacle, Female Sockets
Number of Positions：11
Color：Olive Drab
Applications：Marine, Military
Gender：Receptacle
Additional Feature：STANDARD: MIL-C-5015, COMPATIBLE CONTACTS: 10-597107-161; 10-597107-171
HTS Code：8536.69.40.20
Fastening Type：Threaded
MIL Conformance：YES
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Mixed Contacts：NO
Option：GENERAL PURPOSE
Total Number of Contacts：11
Orientation：N (Normal)
Shielding：Unshielded
Ingress Protection：Environment Resistant
Depth：38.1mm
Military Standard：MIL-DTL-5015
Shell Finish：Olive Drab Chromate over Cadmium
Shell Size - Insert：20-33
Contact Gender：Female
Empty Shell：NO
Backshell Type：SOLID
Plating：Cadmium, Chromate
Body Plating：Cadmium
Cable Opening：1.125 (28.58mm)
Length：38.91mm
REACH SVHC：Unknown
Radiation Hardening：No
RoHS Status：Non-RoHS Compliant
Ratings：Environment Resistant
