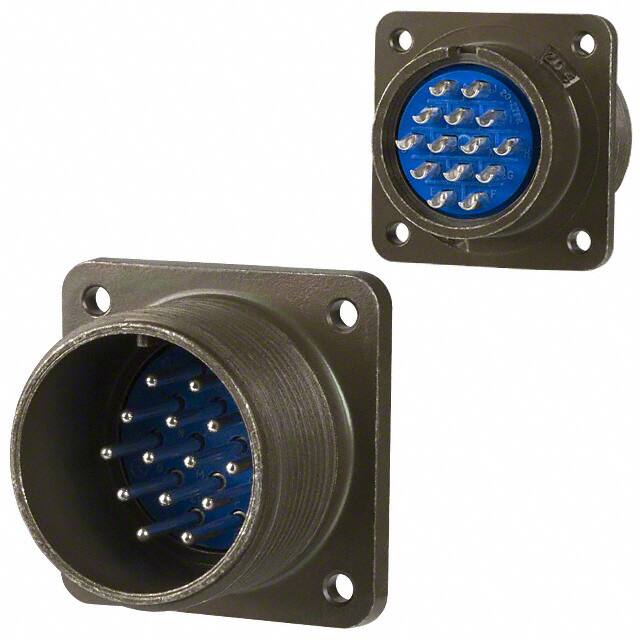

MS3102E20-27P

在庫數 44

小計金額 $16.81735

仕様よくある質問

Factory Lead Time：16 Weeks
Contact Plating：Gold, Silver
Package / Case：Metal
Mounting Type：Panel Mount
Mounting Feature：Flange
Shell Material：Aluminum Alloy
Material：Ferrite
Insert Material：Neoprene
Body Material：Aluminium
Contact Finish Mating：Silver
Contact Materials：Copper Alloy
Published：2005
Series：MIL-5015 Type
Packaging：Bulk
Operating Temperature：-55°C~125°C
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder Cup
ECCN Code：EAR99
Connector Type：Receptacle, Male Pins
Number of Positions：14
Color：Olive Drab
Applications：Marine, Military
Gender：Male
Additional Feature：STANDARD: MIL-C-5015, COMPATIBLE CONTACTS: 10-40569; 10-40599
HTS Code：8536.69.40.20
Fastening Type：Threaded
Voltage - Rated DC：700V
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Mixed Contacts：NO
Option：GENERAL PURPOSE
Current Rating (Amps)：13A
Orientation：N (Normal)
Shielding：Unshielded
Ingress Protection：Environment Resistant
Depth：38.1mm
Military Standard：MIL-DTL-5015
Shell Finish：Olive Drab Chromate over Cadmium
Shell Size - Insert：20-27
Voltage - Rated AC：714mV
Number of Contacts：14
Empty Shell：NO
Backshell Type：SOLID
Contact Style：Pin
Plating：Cadmium, Chromate
Wire Gauge (Max)：20 AWG
Wire Gauge (Min)：16 AWG
Body Plating：Cadmium
Cable Opening：1.125 (28.58mm)
Length：38.91mm
RoHS Status：Non-RoHS Compliant
REACH SVHC：unknown
Ratings：Environment Resistant
