MS3102A18-1S

Amphenol Industrial Operations
Circular Connectors
Metal
Circular MIL Spec Connector 10P #16 SKT CONTACTS
Date Sheet

在庫數 517

1+： $12.80278
10+： $12.07810
100+： $11.39443
500+： $10.74946
1000+： $10.14100

小計金額 $12.80278

仕様よくある質問

Factory Lead Time：16 Weeks
Contact Plating：Silver, Gold
Mount：Box, Flanges, Panel
Mounting Type：Panel Mount
Package / Case：Metal
Mounting Feature：Flange
Shell Material：Aluminum Alloy
Material：Aluminium
Insert Material：Neoprene
Contact Finish Mating：Silver
Contact Materials：Copper Alloy
Operating Temperature：-55°C~125°C
Packaging：Bulk
Series：MIL-5015 Type
Published：2005
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder Cup
ECCN Code：EAR99
Connector Type：Receptacle, Female Sockets
Number of Positions：10
Color：Olive Drab
Applications：Marine, Military
Gender：Receptacle
Additional Feature：STANDARD:MIL-C-5015, POLARIZATION AVAILABLE
HTS Code：8536.69.40.20
Fastening Type：Threaded
Voltage - Rated DC：700V
MIL Conformance：YES
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Mixed Contacts：NO
Option：GENERAL PURPOSE
Total Number of Contacts：10
Orientation：N (Normal)
Shielding：Unshielded
Depth：34.92mm
Current Rating：13A
Military Standard：MIL-DTL-5015
Shell Finish：Olive Drab Chromate over Cadmium
Shell Size - Insert：18-1
Voltage - Rated AC：700V
Contact Gender：Female
Empty Shell：NO
Backshell Type：SOLID
Environmental Characteristics：ENVIRONMENT RESISTANT
Plating：Cadmium, Chromate, Zinc
Wire Gauge (Max)：20 AWG
Wire Gauge (Min)：16 AWG
Body Plating：Cadmium
Wire/Cable Gauge：22 AWG
Cable Opening：1.000 (25.40mm)
Wire/Cable Diameter：1.4 mm
Hole Diameter：3.15 mm
Length：40.69mm
Width：34.93mm
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：Non-RoHS Compliant

在庫數 517

1+： $12.80278
10+： $12.07810
100+： $11.39443
500+： $10.74946
1000+： $10.14100

小計金額 $12.80278

類似スペック製品

MS3102A18-1S Amphenol Industrial Operations
最低価格$12.8027844 在庫數 517
MS3102A16S-1S Amphenol Industrial Operations
最低価格$13.5937845 在庫數 299
MS3102E18-19S Amphenol Industrial Operations
最低価格$12.615228 在庫數 63
97-3102A-18-19P Amphenol Industrial Operations
最低価格$22.4896266 在庫數 58

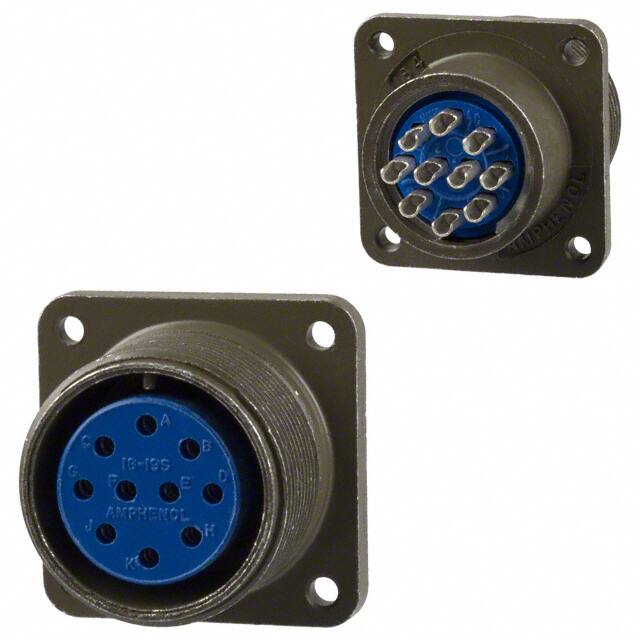

97-3102A-18-19S Amphenol Industrial Operations
