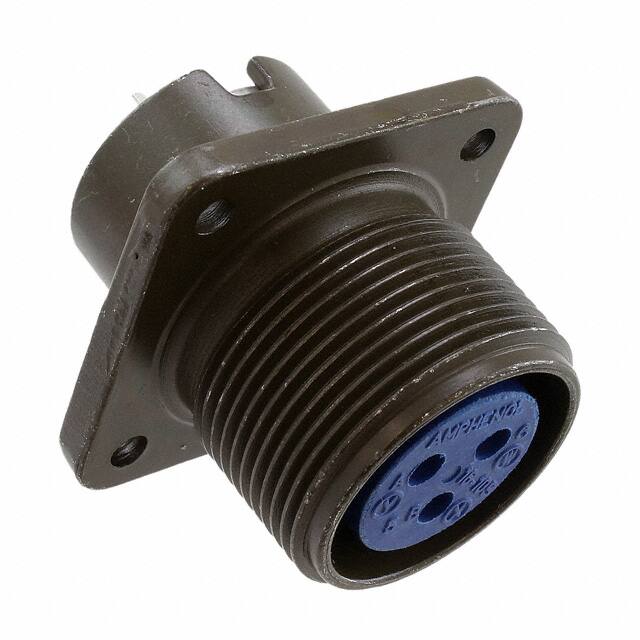

画像はあくまで参考です。
MS3100A10SL-3P
-
Amphenol Industrial Operations
-
Circular Connectors
- AMPHENOL MS3100A10SL-3P Circular Connector, MIL-DTL-5015 Series, Wall Mount Receptacle, 3, Solder Pin, Threaded, 10SL-3
Date Sheet
在庫數 100
- 1+： $16.93394
- 10+： $15.97541
- 100+： $15.07115
- 500+： $14.21806
- 1000+： $13.41327
小計金額 $16.93394
仕様 よくある質問
- Factory Lead Time：16 Weeks
- Contact Plating：Gold, Silver
- Mounting Type：Flanges, Panel, Wall
- Mounting Feature：Flange
- Shell Material：Aluminum Alloy
- Insert Material：Neoprene
- Body Material：Aluminium
- Backshell Material, Plating：Aluminum Alloy, Olive Drab Chromate over Cadmium
- Contact Finish Mating：Silver
- Contact Materials：Copper Alloy
- Operating Temperature：-55°C~125°C
- Packaging：Bulk
- Series：MIL-5015 Type
- Published：2005
- Part Status：Active
- Moisture Sensitivity Level (MSL)：1 (Unlimited)
- Termination：Solder Cup
- Connector Type：Receptacle, Male Pins
- Number of Positions：3
- Color：Olive Drab
- Applications：Marine, Military
- Gender：Male
- Additional Feature：STANDARD:MIL-C-5015, POLARIZATION AVAILABLE
- Fastening Type：Threaded
- DIN Conformance：NO
- IEC Conformance：NO
- Filter Feature：NO
- Mixed Contacts：NO
- Option：GENERAL PURPOSE
- Orientation：N (Normal)
- Shielding：Unshielded
- Depth：25.4mm
- Military Standard：YES
- Shell Finish：Olive Drab Chromate over Cadmium
- Shell Size - Insert：10SL-3
- Number of Contacts：3
- Empty Shell：NO
- Backshell Type：SOLID
- Contact Style：Pin
- Environmental Characteristics：ENVIRONMENT RESISTANT
- Plating：Cadmium, Chromate
- Body Plating：Cadmium
- Features：Backshell
- Length：37.28mm
- REACH SVHC：No SVHC
- Radiation Hardening：No
- RoHS Status：Non-RoHS Compliant
在庫數 100
- 1+： $16.93394
- 10+： $15.97541
- 100+： $15.07115
- 500+： $14.21806
- 1000+： $13.41327
小計金額 $16.93394
