MS3102E28-11S

Amphenol Industrial Operations
Circular Connectors
Circular MIL Spec Connector 22P #16 #12 CONTACTS
Date Sheet

在庫數 58

1+： $29.98649
10+： $28.28914
100+： $26.68787
500+： $25.17723
1000+： $23.75211

小計金額 $29.98649

仕様よくある質問

Factory Lead Time：16 Weeks
Contact Plating：Silver, Gold
Mount：Box, Flanges, Panel
Mounting Type：Panel Mount
Mounting Feature：Flange
Shell Material：Aluminum Alloy
Insert Material：Neoprene
Body Material：Aluminium
Contact Finish Mating：Silver
Contact Materials：Copper Alloy
Voltage Rated：700V
Operating Temperature：-55°C~125°C
Packaging：Bulk
Series：MIL-5015 Type
Published：2005
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder Cup
ECCN Code：EAR99
Connector Type：Receptacle, Female Sockets
Number of Positions：22
Color：Olive Drab
Applications：Marine, Military
Gender：Receptacle
Additional Feature：STANDARD: MIL-C-5015, COMPATIBLE CONTACTS: 10-597107-131; 10-597107-161; 10-597107-171
HTS Code：8536.69.40.20
Fastening Type：Threaded
MIL Conformance：YES
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Mixed Contacts：NO
Option：GENERAL PURPOSE
Total Number of Contacts：22
Orientation：N (Normal)
Shielding：Unshielded
Ingress Protection：Environment Resistant
Depth：50.8mm
Current Rating：23A
Military Standard：MIL-DTL-5015
Shell Finish：Olive Drab Chromate over Cadmium
Shell Size - Insert：28-11
Contact Gender：Female
Empty Shell：NO
Backshell Type：SOLID
Contact Style：Socket
Plating：Cadmium, Chromate
Wire Gauge (Max)：16 AWG
Wire Gauge (Min)：22 AWG
Body Plating：Cadmium
Cable Opening：1.625 (41.28mm)
Length：38.88mm
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：Non-RoHS Compliant
Ratings：Environment Resistant

在庫數 58

1+： $29.98649
10+： $28.28914
100+： $26.68787
500+： $25.17723
1000+： $23.75211

小計金額 $29.98649

類似スペック製品

MS3102E28-11S Amphenol Industrial Operations
最低価格$29.9864889 在庫數 58

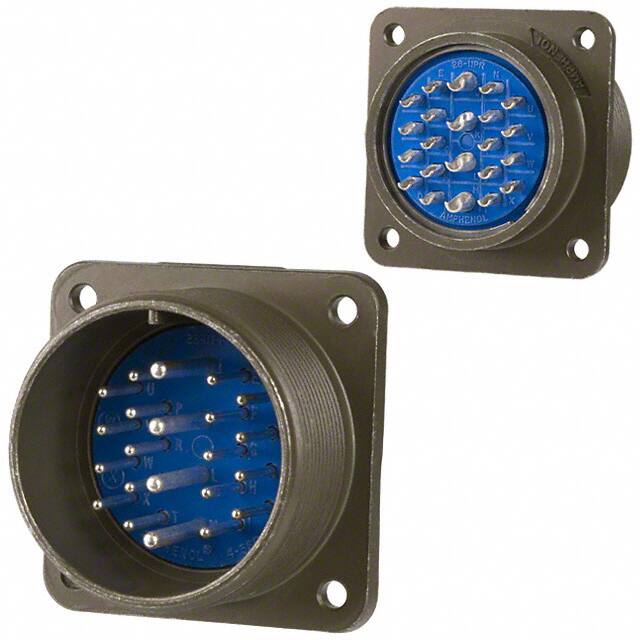

97-3102A-28-11P Amphenol Industrial Operations
最低価格$57.354777 在庫數 53
MS3102E20-29P Amphenol Industrial Operations
最低価格$18.726823 在庫數 106

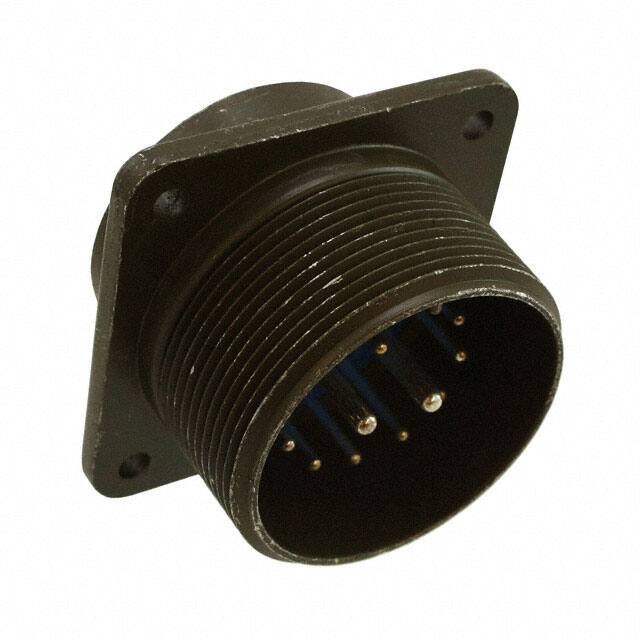

97-3102A-24-7S Amphenol Industrial Operations
最低価格$63.7049907 在庫數 47

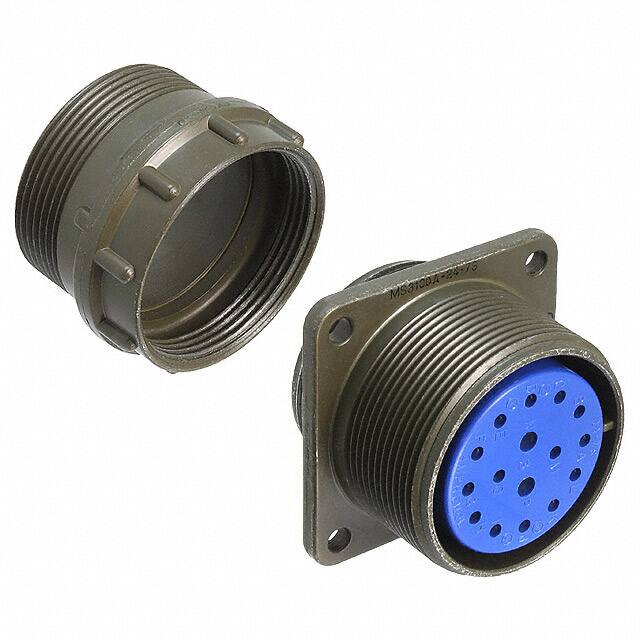

97-3100A-24-7S Amphenol Industrial Operations
