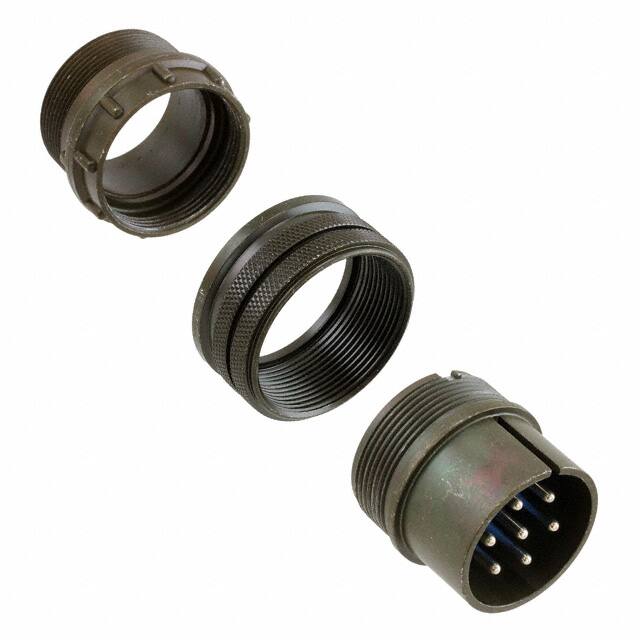

MS3106F20-15P

在庫數 41

小計金額 $0.00000

仕様よくある質問

Factory Lead Time：16 Weeks
Contact Plating：Gold, Silver
Mounting Type：Free Hanging (In-Line)
Shell Material：Aluminum Alloy
Insert Material：Neoprene
Body Material：Aluminium
Backshell Material, Plating：Aluminum Alloy, Olive Drab Chromate over Cadmium
Contact Finish Mating：Silver
Contact Materials：Copper Alloy
Published：2005
Series：Military, MIL-DTL-5015
Packaging：Bulk
Operating Temperature：-55°C~125°C
JESD-609 Code：e4
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder Cup
Connector Type：Plug, Male Pins
Number of Positions：7
Color：Olive Drab
Applications：Marine, Military
Gender：Male
Fastening Type：Threaded
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Mixed Contacts：NO
Option：GENERAL PURPOSE
Orientation：N (Normal)
Shielding：Unshielded
Ingress Protection：Environment Resistant
Depth：38.07mm
Military Standard：YES
Shell Finish：Olive Drab Chromate over Cadmium
Shell Size - Insert：20-15
Voltage - Rated AC：714mV
Number of Contacts：7
Mating Information：MULTIPLE MATING PARTS AVAILABLE
Empty Shell：NO
Backshell Type：SOLID
Contact Style：Pin
Environmental Characteristics：CORROSION/ENVIRONMENT/MOISTURE/VIBRATION RESISTANT
Plating：Cadmium, Chromate
Body Plating：Cadmium
Cable Opening：0.656 (16.66mm)
Features：Backshell, Cable Clamp, Coupling Nut
Length：67.41mm
RoHS Status：Non-RoHS Compliant
Radiation Hardening：No
REACH SVHC：No SVHC
Ratings：Environment Resistant
