PT02E-20-16S

Amphenol Industrial Operations
Circular Connectors
Circular MIL Spec Connector 16P Sz 20 Box Mount Socket Receptacle
Date Sheet

在庫數 30

1+： $58.20622
10+： $54.91153
100+： $51.80333
500+： $48.87106
1000+： $46.10478

小計金額 $58.20622

仕様よくある質問

Factory Lead Time：12 Weeks
Mount：Box, Flanges, Panel
Mounting Type：Panel Mount
Mounting Feature：Flange
Shell Material：Aluminum
Insert Material：Neoprene
Body Material：Aluminium
Contact Finish Mating：Gold
Contact Materials：Copper Alloy
Voltage Rated：1kV
Operating Temperature：-55°C~125°C
Packaging：Bulk
Series：MIL-DTL-26482 Series I, PT
Published：2006
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder Cup
Connector Type：Receptacle, Female Sockets
Number of Positions：16
Color：Olive Drab
Applications：Aerospace, Industrial, Instrumentation, Mass Transit, Military
Gender：Receptacle
Additional Feature：STANDARD: MIL-C-26482, POLARIZATION AVAILABLE
Fastening Type：Bayonet Lock
MIL Conformance：YES
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Mixed Contacts：NO
Option：GENERAL PURPOSE
Total Number of Contacts：16
Orientation：N (Normal)
Shielding：Unshielded
Ingress Protection：Environment Sealed
Current Rating：13A
Military Standard：MIL-DTL-26482
Shell Finish：Olive Drab Chromate over Cadmium
Shell Size - Insert：20-16
Voltage - Rated AC：1kV
Approval Agency：UL
Contact Gender：Female
Empty Shell：NO
Backshell Type：SOLID
Contact Style：Socket
Environmental Characteristics：CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Plating：Cadmium, Chromate
Wire Gauge (Max)：20 AWG
Wire Gauge (Min)：16 AWG
Body Plating：Cadmium
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：Non-RoHS Compliant
Ratings：Environment Resistant

在庫數 30

1+： $58.20622
10+： $54.91153
100+： $51.80333
500+： $48.87106
1000+： $46.10478

小計金額 $58.20622

類似スペック製品

PT02E-20-16S Amphenol Industrial Operations
最低価格$58.2062175 在庫數 30

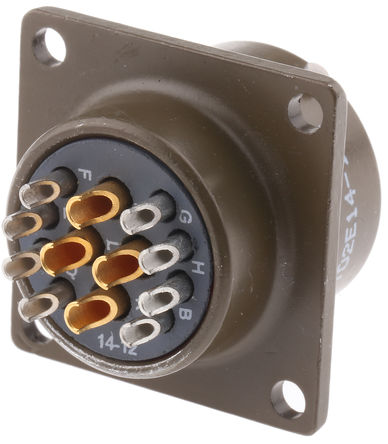

KPT02E14-12S ITT Cannon, LLC
