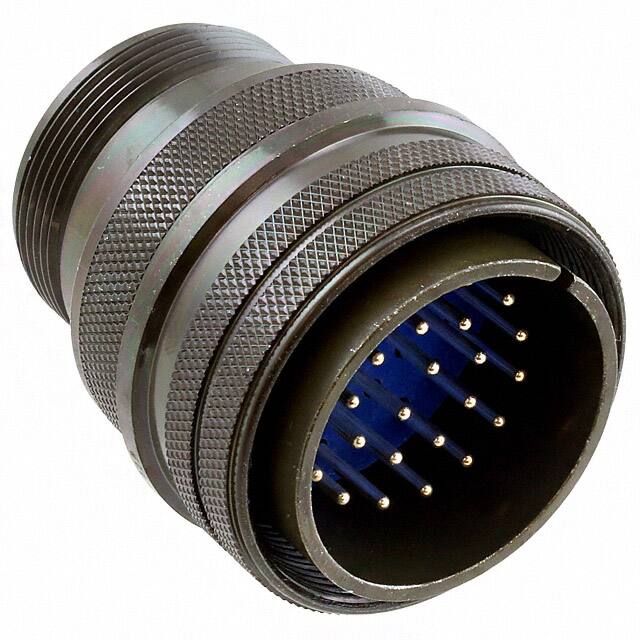

MS3106E28-13P
-
Amphenol Industrial Operations
-
Circular Connectors
- Conn MIL-DTL-5015 Circular PIN 26 POS Solder Cup ST Cable Mount 26 Terminal 1 Port
Date Sheet
在庫數 35
小計金額 $0.00000
仕様 よくある質問
- Factory Lead Time：16 Weeks
- Mount：Cable, Free Hanging
- Mounting Type：Free Hanging (In-Line)
- Shell Material：Aluminum Alloy
- Insert Material：Neoprene
- Backshell Material, Plating：Aluminum Alloy, Olive Drab Chromate over Cadmium
- Contact Finish Mating：Silver
- Contact Materials：Copper Alloy
- Operating Temperature：-55°C~125°C
- Packaging：Bulk
- Series：MIL-5015 Type
- Published：2002
- Part Status：Active
- Moisture Sensitivity Level (MSL)：1 (Unlimited)
- Termination：Solder Cup
- ECCN Code：EAR99
- Connector Type：Plug, Male Pins
- Number of Positions：26
- Color：Olive Drab
- Applications：Marine, Military
- Gender：Male
- Additional Feature：STANDARD: MIL-DTL-5015
- HTS Code：8536.69.40.20
- Fastening Type：Threaded
- MIL Conformance：YES
- DIN Conformance：NO
- IEC Conformance：NO
- Filter Feature：NO
- Mixed Contacts：NO
- Option：WATER PROOF
- Total Number of Contacts：26
- Orientation：N (Normal)
- Shielding：Unshielded
- Ingress Protection：Environment Resistant
- Shell Finish：Olive Drab Chromate over Cadmium
- Shell Size - Insert：28-13
- Mating Information：MULTIPLE MATING PARTS AVAILABLE
- Empty Shell：NO
- Backshell Type：SOLID
- Contact Style：Pin
- Environmental Characteristics：CORROSION/ENVIRONMENT/MOISTURE RESISTANT
- Plating：Cadmium, Chromate
- Cable Opening：0.922 (23.42mm)
- Features：Backshell, Cable Clamp, Coupling Nut
- Length：73.27mm
- Radiation Hardening：No
- RoHS Status：Non-RoHS Compliant
- Ratings：Environment Resistant
