UPL2000-D4/B

在庫數 558

小計金額 $503.85756

仕様よくある質問

Factory Lead Time：8 Weeks
Mount：Cable, Free Hanging
Mounting Type：Free Hanging (In-Line)
Dielectric Material：Polytetrafluoroethylene (PTFE)
Body Material：Brass
Center Contact Plating：Gold
Insulation Materials：POLYTETRAFLUORO ETHYLENE
Voltage Rated：500V
Operating Temperature：-40°C~85°C
Packaging：Bulk
Series：UPL2000
Published：2012
JESD-609 Code：e4
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Connector Type：Plug, Male Pin
Additional Feature：APPLICABLE CABLE: BELDEN 9248, CAPTIVE CENTER CONTACT, VSWR MAX AT 3 GHZ
Fastening Type：Bayonet Lock
MIL Conformance：NO
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Option：GENERAL PURPOSE
Orientation：Straight
Frequency：4GHz
Housing Color：Black
Impedance：75Ohm
Connector Style：BNC
Number of Ports：1
Mating Cycles：500
Contact Termination：Crimp
Includes：3 pcs - 1 Connector, 1 Contact, 1 Sleeve
Insertion Loss：0.2dB
Body Finish：Nickel
Cable Group：Belden 1694A
VSWR：1.2
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：RoHS Compliant

在庫數 558

小計金額 $503.85756

類似スペック製品

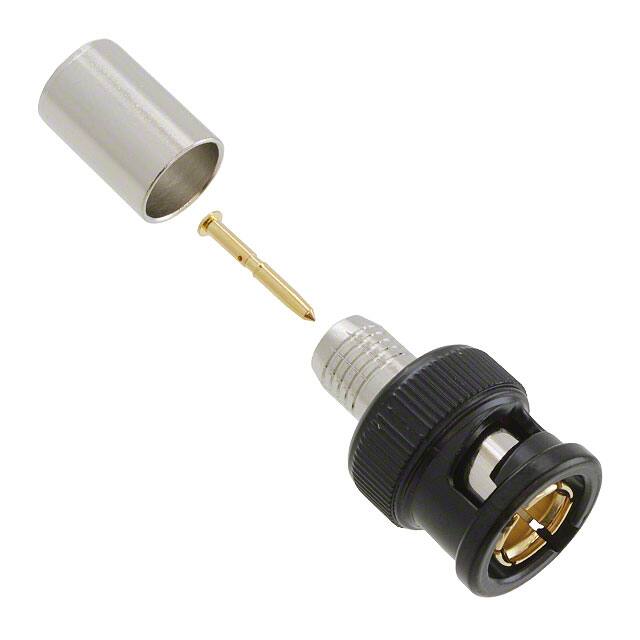

UPL2000-D4/B Cinch Connectivity Solutions Trompeter
最低価格$503.8575597 在庫數 558
034-1026 Amphenol RF
最低価格$10.184825 在庫數 1000

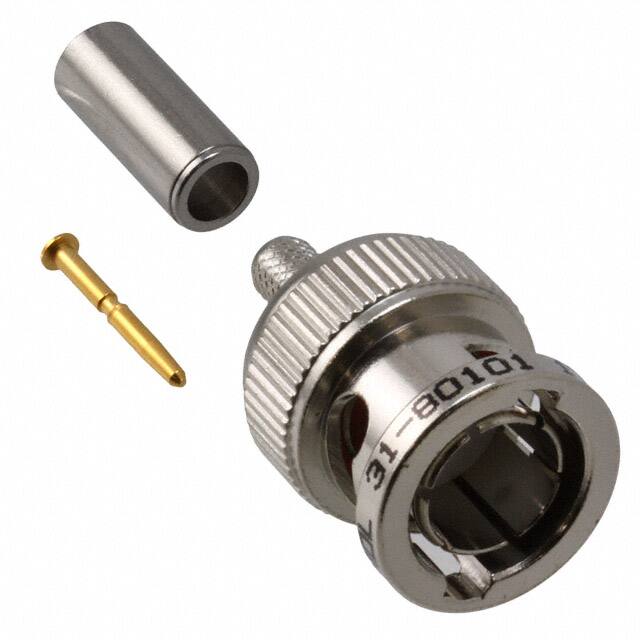

031-80101 Amphenol RF
最低価格$8.51079 在庫數 235

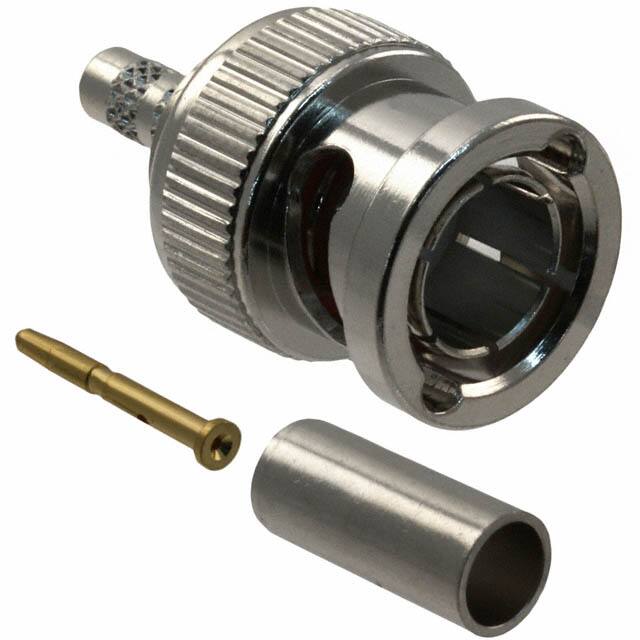

112950 Amphenol RF
最低価格$4.8620727 在庫數 48

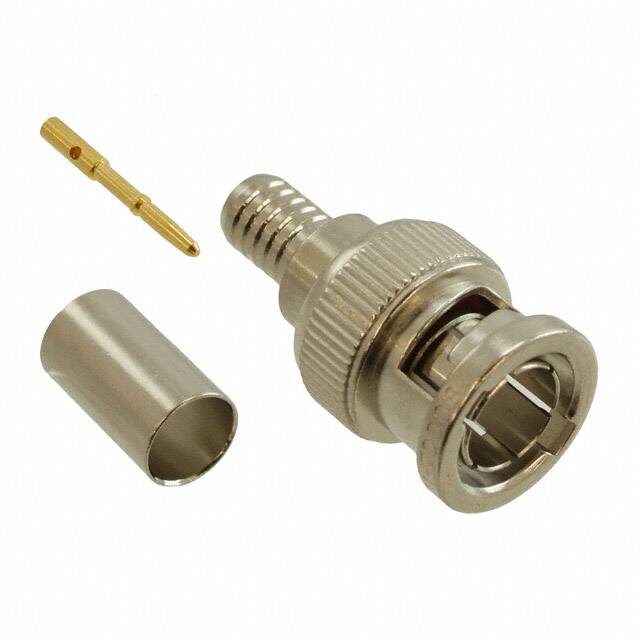

031-70008 Amphenol RF
最低価格$11.644307 在庫數 112
