082-4352

在庫數 140

小計金額 $0.00000

仕様よくある質問

Factory Lead Time：8 Weeks
Contact Plating：Gold
Mount：Cable, Free Hanging
Mounting Type：Free Hanging (In-Line)
Dielectric Material：Polytetrafluoroethylene (PTFE)
Body Material：Brass
Center Contact Plating：Gold
Center Contact Material：Brass
Contact Materials：Brass
Frequency(Max)：11GHz
Insulation Materials：Polytetrafluoroethylene
Voltage Rated：1500V
Operating Temperature：-65°C~165°C
Packaging：Bulk
Published：2009
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Crimp
Connector Type：Plug, Male Pin
Max Operating Temperature：165°C
Min Operating Temperature：-65°C
Fastening Type：Threaded
Orientation：Straight
Ingress Protection：Weatherproof
Frequency：11GHz
Military Standard：M39012
Housing Color：Silver
Impedance：50Ohm
Connector Style：N Type
Number of Ports：1
Body Plating：Silver
Mating Cycles：500
Contact Termination：Solder

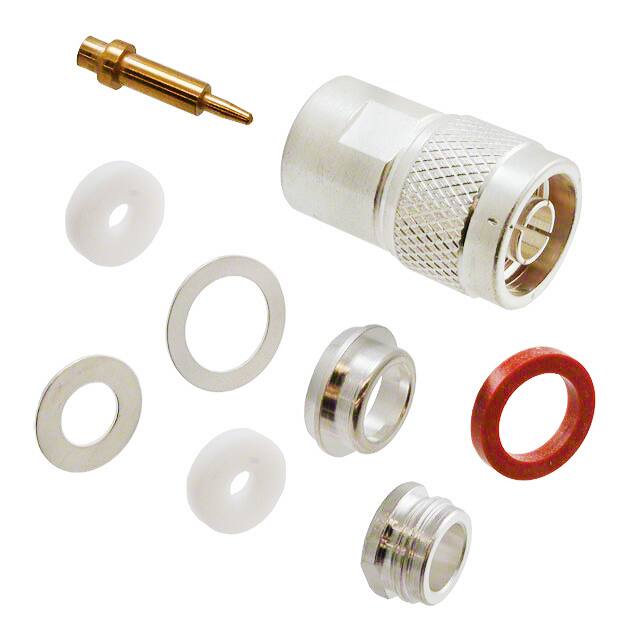

Includes：7 pcs - 1 Connector, 1 Braid Clamp, 1 Clamp, 1 Contact, 1 Gasket, 2 Washers
Insertion Loss：0.15dB
Body Finish：Silver
Cable Group：RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, 393
Shield Termination：Clamp
Radiation Hardening：No
RoHS Status：RoHS Compliant

在庫數 140

小計金額 $0.00000

類似スペック製品
