TDA7293HS

STMicroelectronics
Linear - Amplifiers - Audio

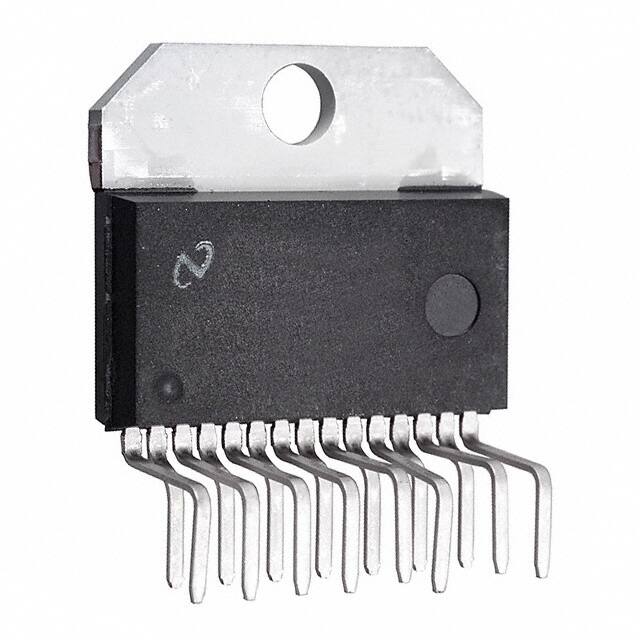

Multiwatt-15 (Horizontal, Bent and Staggered Leads)
STMICROELECTRONICS TDA7293HSAudio Power Amplifier, AB, 1 Channel, 100 W,12V to50V, Multiwatt, 15 Pins
Date Sheet

在庫數 366

小計金額 $0.00000

仕様よくある質問

Factory Lead Time：6 Weeks
Lifecycle Status：ACTIVE (Last Updated: 7 months ago)
Package / Case：Multiwatt-15 (Horizontal, Bent and Staggered Leads)
Mounting Type：Through Hole
Mount：Through Hole
Number of Pins：15
Power - Output (Max)：100W
Packaging：Tube
Operating Temperature：0°C~70°C TA
JESD-609 Code：e3
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Number of Terminations：15
ECCN Code：EAR99
Type：Class AB
Terminal Finish：Tin (Sn)
Max Power Dissipation：50W
Voltage - Supply：±12V~50V
Terminal Position：ZIG-ZAG
Number of Functions：1
Base Part Number：TDA7293
Pin Count：15
Output Type：1-Channel (Mono)
Power Supplies：+-40V
Number of Channels：1
Power Dissipation：50W
Output Power：100W
Supply Type：Dual
Input Offset Voltage (Vos)：10mV
Bandwidth：20 kHz
Nominal Input Voltage：90V
Voltage Gain：80dB
Power Supply Rejection Ratio (PSRR)：75dB
Gain：80 dB
Max Dual Supply Voltage：50V
Min Dual Supply Voltage：12V
Dual Supply Voltage：28V
Input Bias Current：1μA
Max Output Power x Channels @ Load：100W x 1 @ 4 Ω
Harmonic Distortion：10%
Load Impedance：8Ohm
Features：Depop, Differential Inputs, Mute, Short-Circuit and Thermal Protection, Standby
Width：17.75mm
Length：20.2mm
Height：5mm
RoHS Status：ROHS3 Compliant
Radiation Hardening：No
REACH SVHC：No SVHC
Lead Free：Lead Free
