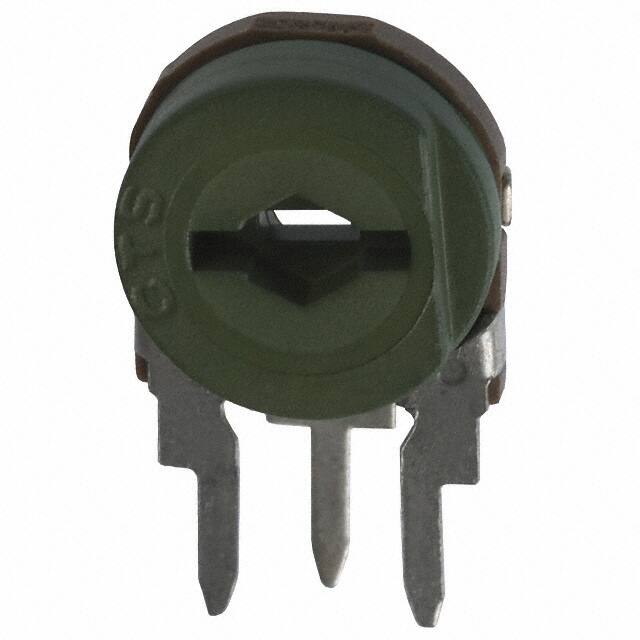

262XR501B

在庫數 0

小計金額 $0.00000

仕様よくある質問

Factory Lead Time：6 Weeks
Surface Mount：NO
Mounting Type：Through Hole
Terminal Shape：FLAT
Resistive Material：Carbon
Operating Temperature (Min.)：-35°C
Published：2012
Series：262
Packaging：Bulk
Size / Dimension：Rectangular - 0.370 x 0.394 Face x 0.469 H 9.40mmx10.00mmx11.90mm
Tolerance：±20%
Part Status：Obsolete
Moisture Sensitivity Level (MSL)：Not Applicable
Number of Terminations：3
Resistance：500Ohm
Power (Watts)：0.15W
Construction：Trimmer
Resistor Type：TRIMMER
Reach Compliance Code：compliant
Termination Style：PC Pins
Actuator Type：SCREW
Lead Length：4.4mm
Working Voltage：350V
Rated Temperature：40°C
Adjustment Type：Side Adjustment
Number of Turns：1
Actuator Orientation：HORIZONTAL
Rotation Angle：265 deg
RoHS Status：RoHS Compliant
