BAV99WT1G

ON Semiconductor
Diodes - Rectifiers - Arrays

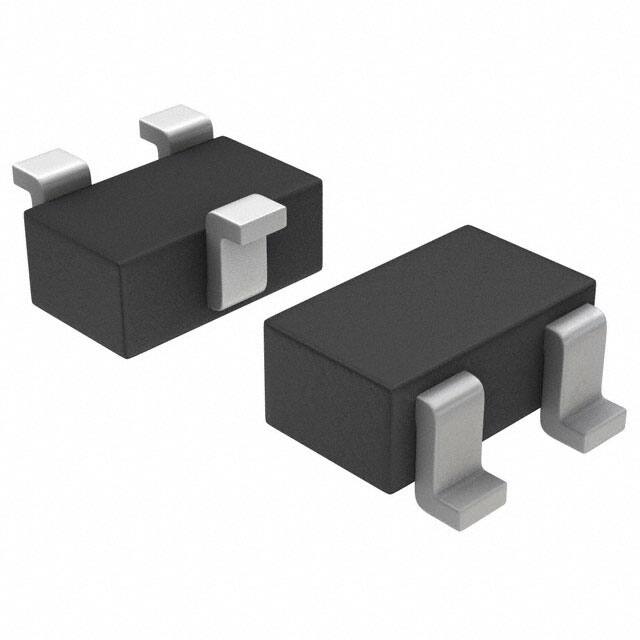

SC-70, SOT-323
DIODE ARRAY GP 100V 215MA SC70-3
Date Sheet

在庫數 44000

1+： $0.12898
10+： $0.12168
100+： $0.11479
500+： $0.10829
1000+： $0.10216

小計金額 $0.12898

仕様よくある質問

Lifecycle Status：ACTIVE (Last Updated: 3 days ago)
Factory Lead Time：4 Weeks
Contact Plating：Tin
Mount：Surface Mount
Mounting Type：Surface Mount
Package / Case：SC-70, SOT-323
Number of Pins：3
Weight：30mg
Diode Element Material：SILICON
Number of Elements：2
Packaging：Cut Tape (CT)
Published：2005
JESD-609 Code：e3
Pbfree Code：yes
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Number of Terminations：3
Termination：SMD/SMT
ECCN Code：EAR99
Max Operating Temperature：150°C
Min Operating Temperature：-65°C
HTS Code：8541.10.00.70
Voltage - Rated DC：70V
Terminal Position：DUAL
Terminal Form：GULL WING
Peak Reflow Temperature (Cel)：260
Current Rating：215mA
Time@Peak Reflow Temperature-Max (s)：40
Base Part Number：BAV99W
Pin Count：3
Element Configuration：Common Cathode
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Diode Type：Standard
Current - Reverse Leakage @ Vr：2.5μA @ 70V
Power Dissipation：300mW
Voltage - Forward (Vf) (Max) @ If：1.25V @ 150mA
Forward Current：200mA
Max Reverse Leakage Current：2.4μA
Operating Temperature - Junction：-65°C~150°C
Max Surge Current：2A
Output Current-Max：0.215A
Voltage - DC Reverse (Vr) (Max)：100V
Current - Average Rectified (Io)：215mA DC
Forward Voltage：1V
Max Reverse Voltage (DC)：70V
Average Rectified Current：200mA
Reverse Recovery Time：6 ns
Peak Reverse Current：2.5μA
Max Repetitive Reverse Voltage (Vrrm)：70V
Peak Non-Repetitive Surge Current：2A
Reverse Voltage：70V
Diode Configuration：1 Pair Series Connection
Max Forward Surge Current (Ifsm)：2A
Recovery Time：6 ns
Height：900μm
Length：2.2mm
Width：1.35mm
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：ROHS3 Compliant
Lead Free：Lead Free

在庫數 44000

1+： $0.12898
10+： $0.12168
100+： $0.11479
500+： $0.10829
1000+： $0.10216

小計金額 $0.12898
