STTH1210DI

STMicroelectronics
Diodes - Rectifiers - Single

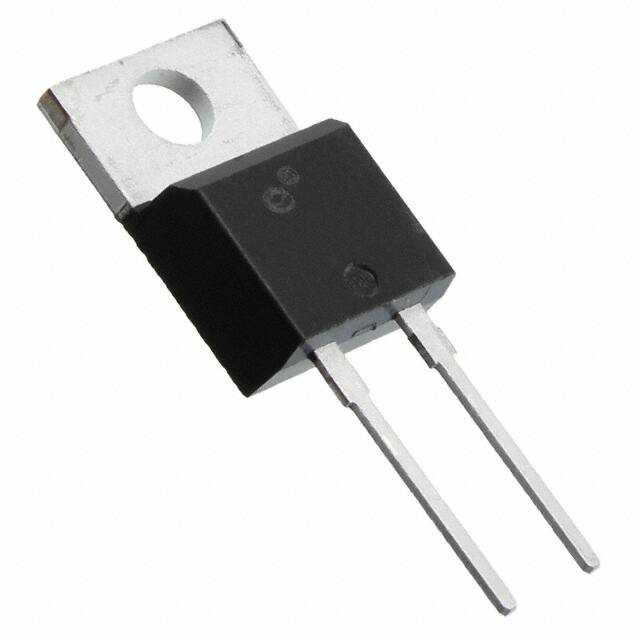

TO-220-2 Insulated, TO-220AC
DIODE GEN PURP 1KV 12A TO220INS
Date Sheet

在庫數 25000

1+： $1.30721
10+： $1.23322
100+： $1.16341
500+： $1.09756
1000+： $1.03543

小計金額 $1.30721

仕様よくある質問

Lifecycle Status：ACTIVE (Last Updated: 7 months ago)
Factory Lead Time：11 Weeks
Mount：Through Hole
Mounting Type：Through Hole
Package / Case：TO-220-2 Insulated, TO-220AC
Number of Pins：2
Diode Element Material：SILICON
Number of Elements：1
Packaging：Tube
JESD-609 Code：e3
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Number of Terminations：2
ECCN Code：EAR99
Terminal Finish：Matte Tin (Sn)
Max Operating Temperature：175°C
Min Operating Temperature：-65°C
Applications：HIGH VOLTAGE ULTRA FAST SOFT RECOVERY
Additional Feature：FREE WHEELING DIODE, LOW LEAKAGE CURRENT, SNUBBER DIODE, HIGH RELIABILITY
HTS Code：8541.10.00.80
Voltage - Rated DC：1kV
Peak Reflow Temperature (Cel)：NOT SPECIFIED
Reach Compliance Code：not_compliant
Current Rating：12A
Time@Peak Reflow Temperature-Max (s)：NOT SPECIFIED
Base Part Number：STTH1210
Pin Count：3
Qualification Status：Not Qualified
Element Configuration：Single
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Diode Type：Standard
Current - Reverse Leakage @ Vr：10μA @ 1000V
Output Current：12A
Voltage - Forward (Vf) (Max) @ If：2V @ 12A
Case Connection：ISOLATED
Forward Current：12A
Operating Temperature - Junction：175°C Max
Max Surge Current：80A
Voltage - DC Reverse (Vr) (Max)：1000V
Forward Voltage：2V
Max Reverse Voltage (DC)：1kV
Average Rectified Current：12A
Number of Phases：1
Reverse Recovery Time：48 ns
Peak Reverse Current：10μA
Max Repetitive Reverse Voltage (Vrrm)：1kV
Peak Non-Repetitive Surge Current：80A
Reverse Voltage：1kV
Max Forward Surge Current (Ifsm)：80A
Recovery Time：48 ns
Height：9.3mm
Length：10.4mm
Width：4.6mm
REACH SVHC：No SVHC
RoHS Status：ROHS3 Compliant
Lead Free：Lead Free

在庫數 25000

1+： $1.30721
10+： $1.23322
100+： $1.16341
500+： $1.09756
1000+： $1.03543

小計金額 $1.30721
