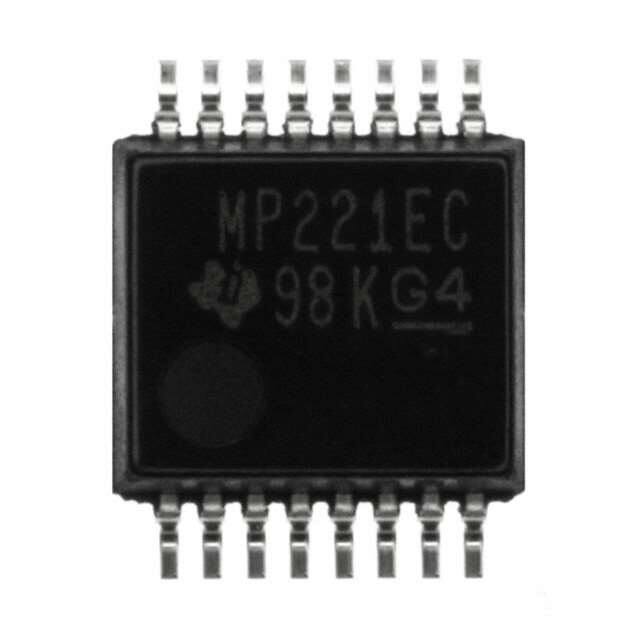

画像はあくまで参考です。
MAX3221EIDBR
-
Texas Instruments
-
Interface - Drivers, Receivers, Transceivers
- 16-SSOP (0.209, 5.30mm Width)
- IC RS232 3V-5.5V DRVR 16-SSOP
Date Sheet
在庫數 5000
- 1+： $1.59389
- 10+： $1.50367
- 100+： $1.41856
- 500+： $1.33826
- 1000+： $1.26251
小計金額 $1.59389
仕様 よくある質問
- Lifecycle Status：ACTIVE (Last Updated: 3 days ago)
- Factory Lead Time：6 Weeks
- Mount：Surface Mount
- Mounting Type：Surface Mount
- Package / Case：16-SSOP (0.209, 5.30mm Width)
- Number of Pins：16
- Weight：128.593437mg
- Interface Standards：EIA-232-F; TIA-232-F; V.28
- Operating Temperature：-40°C~85°C
- Packaging：Tape & Reel (TR)
- JESD-609 Code：e4
- Pbfree Code：yes
- Part Status：Active
- Moisture Sensitivity Level (MSL)：1 (Unlimited)
- Number of Terminations：16
- ECCN Code：EAR99
- Type：Transceiver
- Terminal Finish：Nickel/Palladium/Gold (Ni/Pd/Au)
- Additional Feature：ALSO OPERATES AT 5V SUPPLY
- Voltage - Supply：3V~5.5V
- Terminal Position：DUAL
- Terminal Form：GULL WING
- Peak Reflow Temperature (Cel)：260
- Number of Functions：1
- Supply Voltage：3.3V
- Terminal Pitch：0.65mm
- Base Part Number：MAX3221
- Pin Count：16
- Operating Supply Voltage：5V
- Nominal Supply Current：1mA
- Logic Function：Receiver, Transceiver
- Data Rate：250kbps
- Differential Output：NO
- Protocol：RS232
- Input Characteristics：SCHMITT TRIGGER
- Number of Drivers/Receivers：1/1
- Driver Number of Bits：1
- Receiver Number of Bits：1
- Duplex：Full
- Receiver Hysteresis：500mV
- Number of Transceivers：1
- Simplex/Duplex：Full Duplex
- Supply Voltage1-Nom：3.3V
- Height：2mm
- Length：6.2mm
- Width：5.3mm
- Thickness：1.95mm
- REACH SVHC：No SVHC
- Radiation Hardening：No
- RoHS Status：ROHS3 Compliant
- Lead Free：Lead Free
在庫數 5000
- 1+： $1.59389
- 10+： $1.50367
- 100+： $1.41856
- 500+： $1.33826
- 1000+： $1.26251
小計金額 $1.59389
