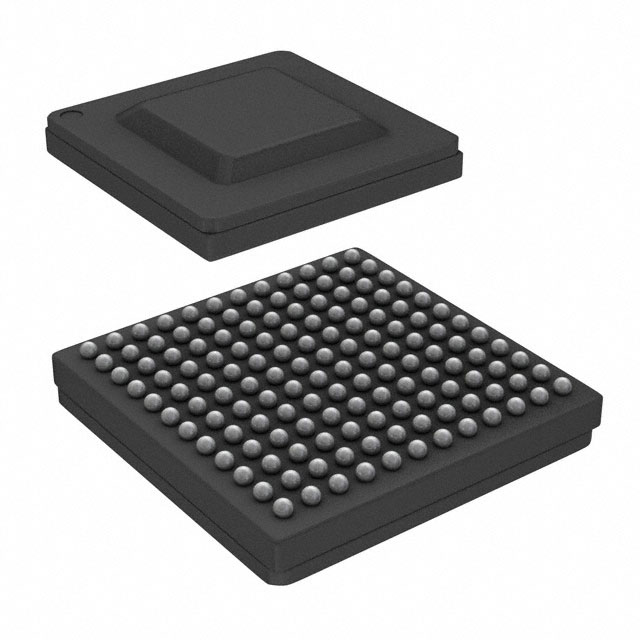

画像はあくまで参考です。

TLK10232CTR

在庫數 200

  • 1+: $26.86542
  • 10+: $25.34474
  • 100+: $23.91013
  • 500+: $22.55672
  • 1000+: $21.27993

小計金額 $26.86542

仕様 よくある質問
  • Factory Lead Time:6 Weeks
  • Mount:Surface Mount
  • Mounting Type:Surface Mount
  • Package / Case:144-BBGA, FCBGA
  • Number of Pins:144
  • Current - Supply (Nom):650mA
  • Operating Temperature:-40°C~85°C
  • Packaging:Tray
  • JESD-609 Code:e1
  • Pbfree Code:yes
  • Part Status:ACTIVE (Last Updated: 1 day ago)
  • Moisture Sensitivity Level (MSL):4 (72 Hours)
  • ECCN Code:5A991.B.1
  • Type:Transceiver
  • Terminal Finish:Tin/Silver/Copper (Sn/Ag/Cu)
  • Max Power Dissipation:2.3W
  • Terminal Position:BOTTOM
  • Terminal Form:BALL
  • Peak Reflow Temperature (Cel):260
  • Number of Functions:1
  • Terminal Pitch:1mm
  • Base Part Number:TLK10232
  • Current - Supply (Max):650mA
  • Data Rate:10.3125 Gbps
  • Differential Output:NO
  • Output Polarity:TRUE
  • Protocol:Ethernet
  • Max Dual Supply Voltage:1.05V
  • Driver Number of Bits:1
  • Min Dual Supply Voltage:950mV
  • Receiver Number of Bits:1
  • Number of Transceivers:2
  • Supply Voltage1-Nom:1V
  • Voltage - Supply (Max):1.05V
  • Voltage - Supply (Min):950mV
  • High Level Input Current-Max:0.00017A
  • Height:3.25mm
  • Length:13mm
  • Width:13mm
  • Thickness:2.59mm
  • Radiation Hardening:No
  • RoHS Status:ROHS3 Compliant
  • Lead Free:Lead Free

在庫數 200

  • 1+: $26.86542
  • 10+: $25.34474
  • 100+: $23.91013
  • 500+: $22.55672
  • 1000+: $21.27993

小計金額 $26.86542

類似スペック製品

  • TLK10232CTR Texas Instruments

    最低価格$26.86542 在庫數 200

  • TLK10002CTR Texas Instruments

    最低価格$34.000927 在庫數 59
