TFC-140-32-F-D-A

Samtec Inc.
Rectangular Connectors - Headers, Male Pins
SAMTEC TFC-140-32-F-D-A Wire-To-Board Connector, TFC Series, 80 Contacts, Header, 1.27 mm, Surface Mount, 2 Rows
Date Sheet

在庫數 19

小計金額 $0.00000

仕様よくある質問

Factory Lead Time：3 Weeks
Mounting Type：Surface Mount
Contact Shape：Square
Housing Material：Polymer
Mounting Option：LOCKING
Contact Finish Mating：Gold
Contact Length-Mating：0.130 3.30mm
Contact Materials：Phosphor Bronze
Insulation Materials：Liquid Crystal Polymer (LCP)
Voltage - Rated (AC)：350V
Voltage Rated：275VAC
Operating Temperature：-55°C~125°C
Packaging：Tube
Series：Tiger Eye™ TFC
Published：2013
JESD-609 Code：e3
Pbfree Code：yes
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder
ECCN Code：EAR99
Connector Type：Header
Number of Positions：80
Number of Rows：2
Gender：Male
Additional Feature：TIGER EYE SYSTEM, SHROUDED
HTS Code：8536.69.40.40
Fastening Type：Push-Pull
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Contact Type：Male Pin
Mixed Contacts：NO
Option：GENERAL PURPOSE
Current Rating (Amps)：3.1A per Contact
Orientation：Straight
Depth：5.72mm
Insulation Height：0.441 11.20mm
Style：Board to Board or Cable
Number of Positions Loaded：All
Pitch - Mating：0.05 inch
Insulation Color：Black
Military Standard：NO
Number of Conductors：ONE
Reference Standard：UL, CSA
Reliability：COMMERCIAL
Row Spacing - Mating：0.050 (1.27mm)
Shrouding：Shrouded - 4 Wall
Number of Contacts：80
Contact Finish - Post：Tin
PCB Contact Pattern：RECTANGULAR
UL Flammability Code：UL94 V-0
Contact Resistance：15mOhm
Insulation Resistance：5000000000Ohm
Polarization Key：POLARIZED HOUSING
Features：Board Guide
Length：53.98mm
Plating Thickness：FLASH inch
Contact Finish Thickness - Mating：3.00μin 0.076μm
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：ROHS3 Compliant

在庫數 19

小計金額 $0.00000

類似スペック製品

TFC-140-32-F-D-A Samtec Inc.
見積かごへ在庫數 19
FTS-140-01-L-DV Samtec Inc.
見積かごへ在庫數 50

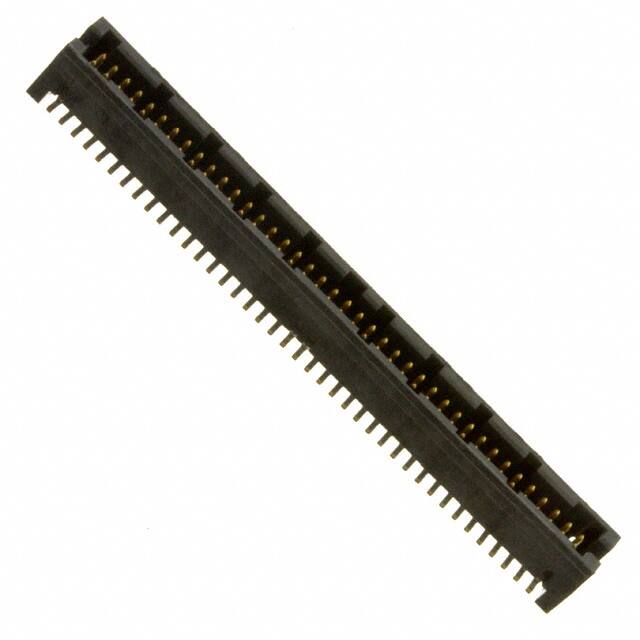

87409-140LF Amphenol ICC (FCI)
