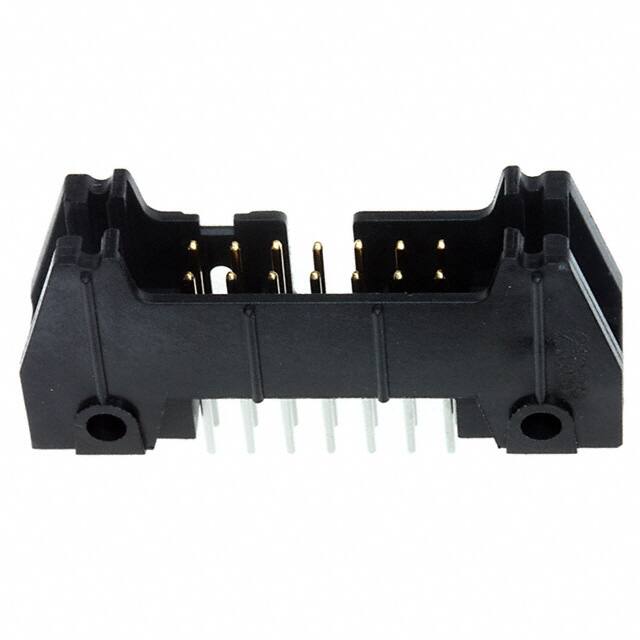

N3314-6002RB

在庫數 78

小計金額 $0.00000

仕様よくある質問

Factory Lead Time：6 Weeks
Contact Plating：Gold
Mounting Type：Through Hole
Contact Shape：Square
Housing Material：Polyester
Contact Finish Mating：Gold
Contact Length-Mating：0.240 6.10mm
Contact Materials：Copper Alloy
Insulation Materials：Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature (Max)：105°C
Operating Temperature (Min)：-55°C
Voltage Rated：1kV
Operating Temperature：-55°C~105°C
Packaging：Bulk
Series：3000
Published：2004
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder
Connector Type：Header
Number of Positions：14
Color：Beige
Number of Rows：2
Gender：Male
Fastening Type：Push-Pull
Contact Type：Male Pin
Current Rating (Amps)：1A
Pitch：2.54mm
Orientation：Straight
Depth：8.6mm
Insulation Height：0.680 17.27mm
Style：Board to Cable/Wire
Number of Positions Loaded：All
Pitch - Mating：0.100 2.54mm
Insulation Color：Black
Approval Agency：UL
Row Spacing - Mating：0.100 (2.54mm)
Contact Length - Post：0.112 2.84mm
Shrouding：Shrouded - 4 Wall
Number of Contacts：14
Contact Finish - Post：Tin
UL Flammability Code：UL94 V-0
Housing Color：Black
Overall Contact Length：0.652 16.56mm
Insulation Resistance：1GOhm
Current Rating (Max)：2A
Features：Keying Slot, Mounting Flange
Length：37.21mm
Contact Finish Thickness - Mating：30.0μin 0.76μm
Contact Finish Thickness - Post：200.0μin 5.08μm
REACH SVHC：Unknown
RoHS Status：RoHS Compliant
Lead Free：Lead Free
