FTSH-130-01-L-D

Samtec Inc.
Rectangular Connectors - Headers, Male Pins
SAMTEC FTSH-130-01-L-D Board-To-Board Connector, FTSH Series, 60 Contacts, Header, 1.27 mm, Solder, 2 Rows
Date Sheet

在庫數 275

1+： $5.28084
10+： $4.98192
100+： $4.69993
500+： $4.43389
1000+： $4.18292

小計金額 $5.28084

仕様よくある質問

Factory Lead Time：3 Weeks
Mounting Type：Through Hole
Contact Shape：Square
Contact Finish Mating：Gold
Contact Length-Mating：0.120 3.05mm
Contact Materials：Phosphor Bronze
Insulation Materials：Liquid Crystal Polymer (LCP)
Operating Temperature：-55°C~125°C
Packaging：Tube
Series：FTSH
Published：2008
JESD-609 Code：e3
Pbfree Code：yes
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder
ECCN Code：EAR99
Connector Type：Header, Cuttable
Number of Positions：60
Number of Rows：2
Gender：Male
Additional Feature：ELP
HTS Code：8536.69.40.40
Fastening Type：Push-Pull
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Contact Type：Male Pin
Mixed Contacts：NO
Option：GENERAL PURPOSE
Current Rating (Amps)：3.4A per Contact
Insulation Height：0.099 2.51mm
Style：Board to Board or Cable
Number of Positions Loaded：All
Pitch - Mating：0.05 inch
Insulation Color：Black
Military Standard：NO
Number of Conductors：ONE
Reference Standard：UL
Reliability：COMMERCIAL
Body Length or Diameter：1.497 inch
Row Spacing - Mating：0.050 (1.27mm)
Contact Length - Post：0.090 2.29mm
Shrouding：Unshrouded
Contact Finish - Post：Tin
PCB Contact Pattern：RECTANGULAR
Body Breadth：0.135 inch
UL Flammability Code：UL94 V-0
Body Depth：0.099 inch
Overall Contact Length：0.309 7.86mm
Plating Thickness：10μin
Contact Finish Thickness - Mating：10.0μin 0.25μm
Length - Termination：0.09 inch
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：ROHS3 Compliant

在庫數 275

1+： $5.28084
10+： $4.98192
100+： $4.69993
500+： $4.43389
1000+： $4.18292

小計金額 $5.28084

類似スペック製品

FTSH-130-01-L-D Samtec Inc.
最低価格$5.280839 在庫數 275

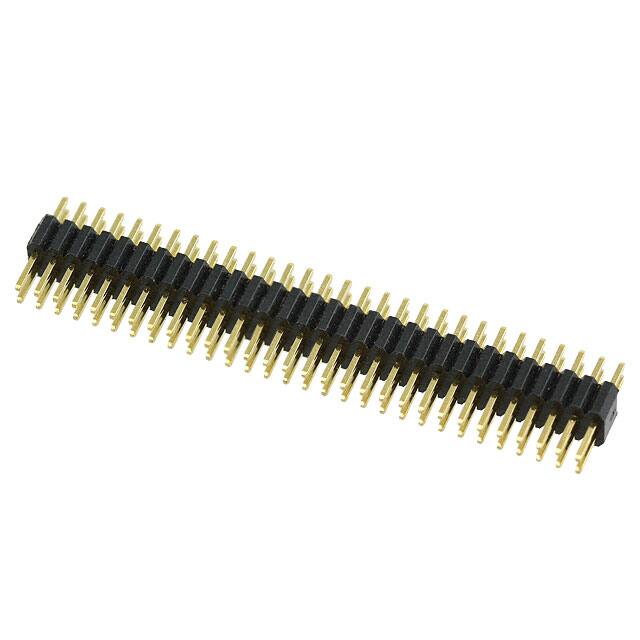

20021111-00060T4LF Amphenol ICC (FCI)
