TSW-104-07-L-S

Samtec Inc.
Rectangular Connectors - Headers, Male Pins
CONN HEADER VERT 4POS 2.54MM
Date Sheet

在庫數 38

1+： $0.20891
10+： $0.19708
100+： $0.18593
500+： $0.17540
1000+： $0.16547

小計金額 $0.20891

仕様よくある質問

Factory Lead Time：0 Weeks
Mount：Through Hole
Mounting Type：Through Hole
Contact Shape：Square
Housing Material：Polyester
Contact Finish Mating：Gold
Contact Length-Mating：0.230 5.84mm
Contact Materials：Phosphor Bronze
Insulation Materials：Polybutylene Terephthalate (PBT)
Voltage Rated：550V
Operating Temperature：-55°C~125°C
Packaging：Bulk
Series：TSW
Published：2005
JESD-609 Code：e3
Pbfree Code：yes
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder
Connector Type：Header
Number of Positions：4
Number of Rows：1
Gender：Male
Additional Feature：E.L.P.
Fastening Type：Push-Pull
MIL Conformance：NO
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Contact Type：Male Pin
Mixed Contacts：NO
Option：GENERAL PURPOSE
Orientation：Straight
Depth：2.54mm
Insulation Height：0.100 2.54mm
Style：Board to Board or Cable
Number of Positions Loaded：All
Current Rating：7.6A
Pitch - Mating：0.100 2.54mm
Number of Conductors：ONE
Reference Standard：UL
Reliability：COMMERCIAL
Contact Length - Post：0.100 2.54mm
Shrouding：Unshrouded
Number Of PCB Rows：1
Lead Pitch：2.54mm
Contact Finish - Post：Tin
PCB Contact Pattern：RECTANGULAR
Housing Color：Black
Overall Contact Length：0.430 10.92mm
Max Voltage Rating (AC)：550V
Max Current Rating：7A
Length：10.16mm
Width：2.54mm
Contact Finish Thickness - Mating：10.0μin 0.25μm
Material Flammability Rating：UL94 V-0
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：ROHS3 Compliant
Lead Free：Lead Free

在庫數 38

1+： $0.20891
10+： $0.19708
100+： $0.18593
500+： $0.17540
1000+： $0.16547

小計金額 $0.20891

類似スペック製品

TSW-104-07-L-S Samtec Inc.
最低価格$0.208908 在庫數 38

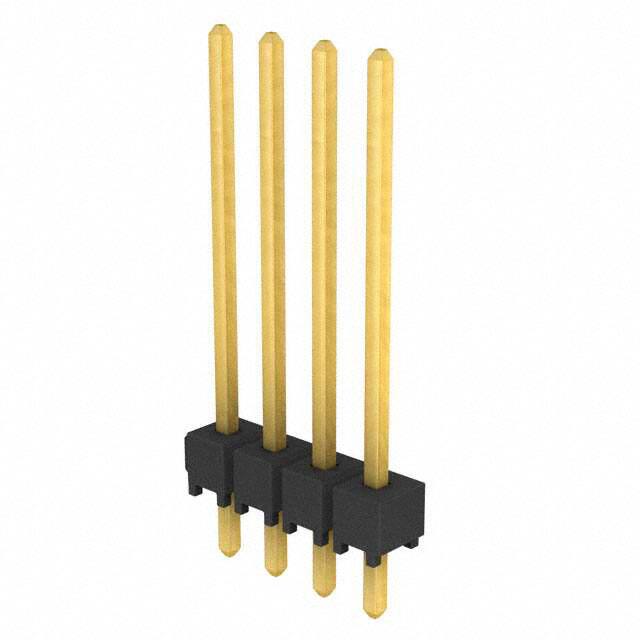

TSW-104-17-G-S Samtec Inc.
最低価格$0.4399452 在庫數 3599

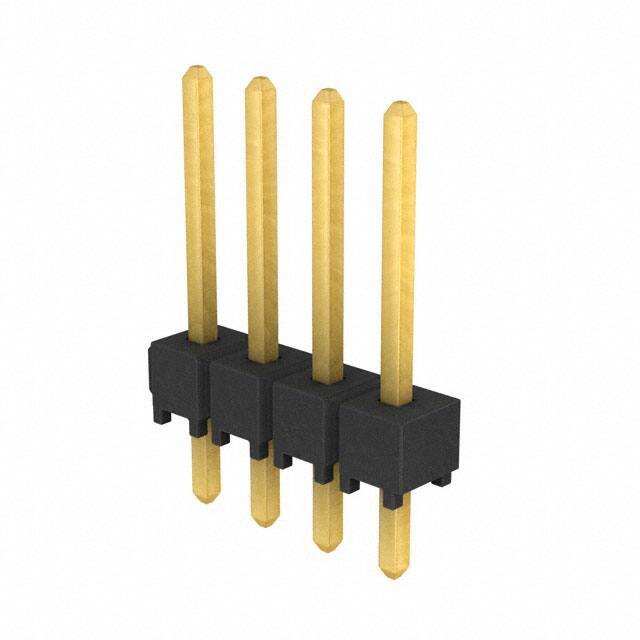

TSW-104-14-G-S Samtec Inc.
最低価格$0.689417 在庫數 800
TSW-104-14-L-S Samtec Inc.
最低価格$0.4163715 在庫數 1995

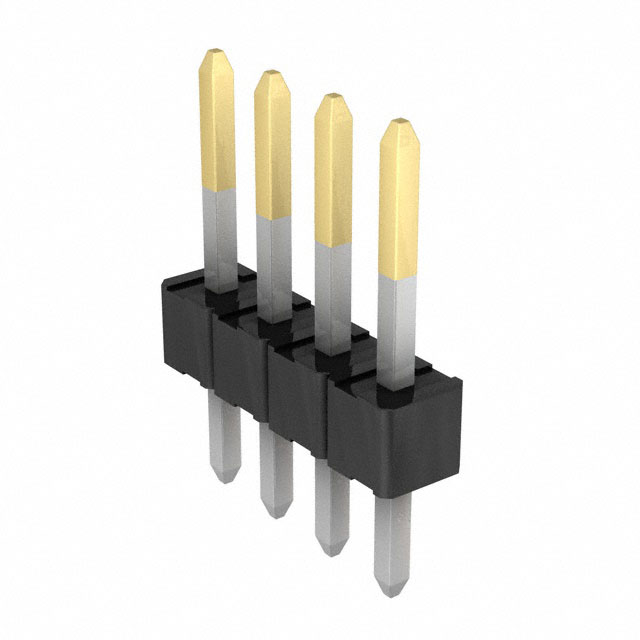

22-28-4045 Molex
