TSW-110-07-T-D

Samtec Inc.
Rectangular Connectors - Headers, Male Pins
CONN HEADER 20POS .100" DL TIN
Date Sheet

在庫數 12718

1+： $0.59810
10+： $0.56425
100+： $0.53231
500+： $0.50218
1000+： $0.47376

小計金額 $0.59810

仕様よくある質問

Factory Lead Time：1 Weeks
Mount：Through Hole
Mounting Type：Through Hole
Contact Shape：Square
Housing Material：Polyester
Contact Finish Mating：Tin
Contact Length-Mating：0.230 5.84mm
Contact Materials：Phosphor Bronze
Insulation Materials：Polybutylene Terephthalate (PBT)
Operating Temperature：-55°C~105°C
Packaging：Bulk
Series：TSW
Published：2005
JESD-609 Code：e3
Pbfree Code：yes
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder
Connector Type：Header
Number of Positions：20
Number of Rows：2
Gender：Male
Additional Feature：E.L.P.
Fastening Type：Push-Pull
MIL Conformance：NO
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Contact Type：Male Pin
Mixed Contacts：NO
Option：GENERAL PURPOSE
Orientation：Straight
Depth：5.08mm
Insulation Height：0.100 2.54mm
Style：Board to Board or Cable
Number of Positions Loaded：All
Pitch - Mating：0.100 2.54mm
Number of Conductors：ONE
Reference Standard：UL
Reliability：COMMERCIAL
Row Spacing - Mating：0.100 (2.54mm)
Contact Length - Post：0.100 2.54mm
Shrouding：Unshrouded
Number Of PCB Rows：2
Lead Pitch：2.54mm
PCB Contact Pattern：RECTANGULAR
Body Breadth：0.1 inch
UL Flammability Code：94V-0
Housing Color：Black
Overall Contact Length：0.430 10.92mm
Mating Contact Pitch：0.1 inch
Max Voltage Rating (AC)：550V
Max Current Rating：7.6A
Length：25.4mm
Width：5.08mm
Material Flammability Rating：UL94 V-0
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：ROHS3 Compliant
Lead Free：Lead Free

在庫數 12718

1+： $0.59810
10+： $0.56425
100+： $0.53231
500+： $0.50218
1000+： $0.47376

小計金額 $0.59810

類似スペック製品

TSW-110-07-T-D Samtec Inc.
最低価格$0.5981049 在庫數 12718
TSW-110-14-T-D Samtec Inc.
最低価格$1.0139931 在庫數 666
TSW-110-17-T-D Samtec Inc.
最低価格$1.1993913 在庫數 228
TSW-110-23-T-D Samtec Inc.
最低価格$0.9151731 在庫數 138

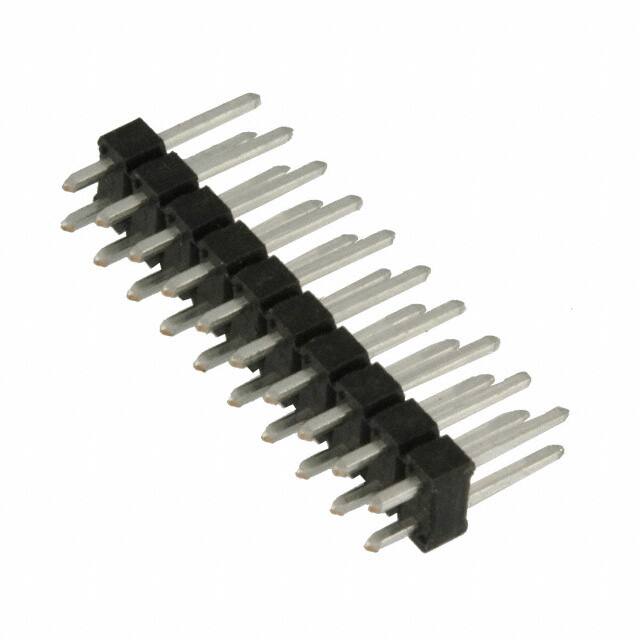

67996-420HLF Amphenol ICC (FCI)
