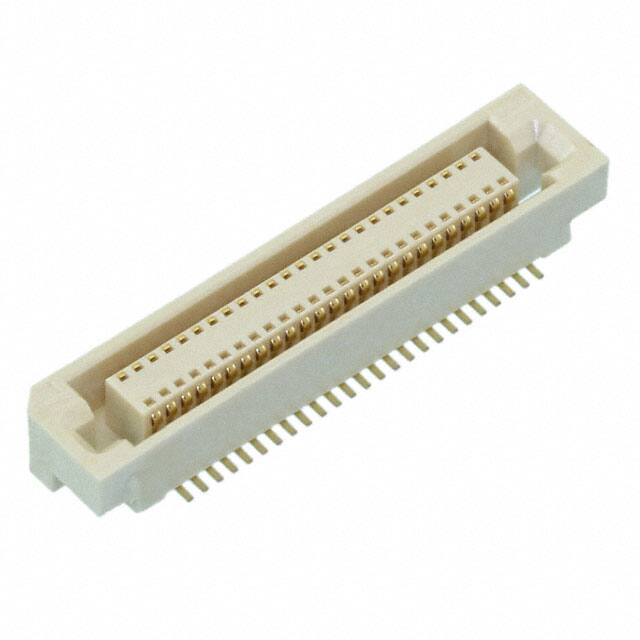

画像はあくまで参考です。
FTE-128-01-G-DV
-
Samtec Inc.
-
Rectangular Connectors - Headers, Male Pins
- SAMTEC FTE-128-01-G-DV Board-To-Board Connector, FTE Series, Solder, Header, 56 Contacts, 0.8 mm, Gold Plated Contacts
Date Sheet
在庫數 48
小計金額 $0.00000
仕様 よくある質問
- Mounting Type：Surface Mount
- Contact Shape：Square
- Housing Material：Polymer
- Contact Finish Mating：Gold
- Contact Length-Mating：0.075 1.90mm
- Contact Materials：Phosphor Bronze
- Insulation Materials：Liquid Crystal Polymer (LCP)
- Operating Temperature：-55°C~125°C
- Packaging：Bulk
- Series：FTE
- Published：2013
- JESD-609 Code：e4
- Pbfree Code：yes
- Part Status：Active
- Moisture Sensitivity Level (MSL)：1 (Unlimited)
- Termination：Solder
- Connector Type：Header
- Number of Positions：56
- Number of Rows：2
- Gender：Male
- Additional Feature：LOW PROFILE
- Fastening Type：Push-Pull
- DIN Conformance：NO
- IEC Conformance：NO
- Filter Feature：NO
- Contact Type：Male Pin
- Mixed Contacts：NO
- Option：GENERAL PURPOSE
- Current Rating (Amps)：2.7A per Contact
- Pitch：800μm
- Orientation：Straight
- Terminal Pitch：0.8mm
- Depth：3.05mm
- Insulation Height：0.055 1.40mm
- Style：Board to Board
- Number of Positions Loaded：All
- Pitch - Mating：0.031 0.80mm
- Military Standard：NO
- Number of Conductors：ONE
- Reference Standard：UL
- Reliability：COMMERCIAL
- Row Spacing - Mating：0.047 (1.20mm)
- Shrouding：Unshrouded
- Number of Contacts：56
- PCB Contact Pattern：RECTANGULAR
- Mating Information：MULTIPLE MATING PARTS AVAILABLE
- UL Flammability Code：UL94 V-0
- Housing Color：Black
- Current Rating (Max)：750mA
- Length：22.4mm
- Width：3.05mm
- Plating Thickness：10μin
- Contact Finish Thickness - Mating：10.0μin 0.25μm
- Contact Finish Thickness - Post：3.00μin 0.076μm
- REACH SVHC：No SVHC
- RoHS Status：ROHS3 Compliant
- Lead Free：Lead Free
