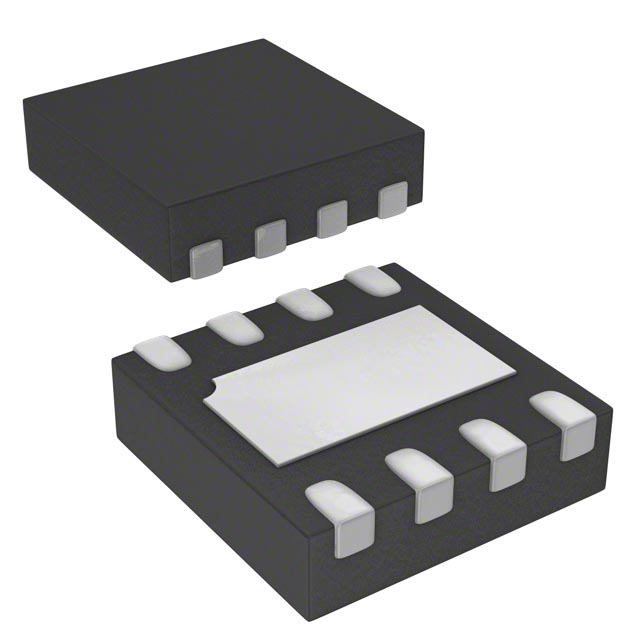

画像はあくまで参考です。
TDE1708DFT
-
STMicroelectronics
-
PMIC - Power Distribution Switches, Load Drivers
- 8-VDFN Exposed Pad
- IC IPS SWITCH 6-48V 4X4DFN
Date Sheet
在庫數 100
- 1+: $3.84008
- 10+: $3.62272
- 100+: $3.41766
- 500+: $3.22421
- 1000+: $3.04170
小計金額 $3.84008
仕様 よくある質問
- Lifecycle Status:ACTIVE (Last Updated: 8 months ago)
- Factory Lead Time:14 Weeks
- Mount:Surface Mount
- Mounting Type:Surface Mount
- Package / Case:8-VDFN Exposed Pad
- Number of Pins:8
- Current - Supply (Nom):1.5mA
- Operating Temperature:-25°C~85°C TA
- Packaging:Tape & Reel (TR)
- JESD-609 Code:e3
- Part Status:Active
- Moisture Sensitivity Level (MSL):3 (168 Hours)
- Number of Terminations:8
- ECCN Code:EAR99
- Terminal Finish:Matte Tin (Sn) - annealed
- Voltage - Supply:Not Required
- Terminal Position:DUAL
- Peak Reflow Temperature (Cel):260
- Number of Functions:1
- Supply Voltage:24V
- Base Part Number:TDE1708
- Pin Count:8
- Number of Outputs:2
- Output Type:Bipolar
- Operating Supply Voltage:48V
- Interface:On/Off
- Output Configuration:High Side or Low Side
- Max Supply Current:1.5mA
- Current - Output:250mA
- Propagation Delay:15 μs
- Input Type:Non-Inverting
- Turn On Delay Time:15 μs
- Switch Type:General Purpose
- Min Input Voltage:6V
- Max Input Voltage:48V
- Ratio - Input:Output:1:2
- Voltage - Load:6V~48V
- Driver Number of Bits:2
- Fault Protection:Over Temperature, Reverse Current
- Output Peak Current Limit-Nom:0.25A
- Built-in Protections:TRANSIENT; THERMAL
- Features:5V Regulated Output
- Length:4mm
- Height Seated (Max):1mm
- Width:4mm
- Radiation Hardening:No
- RoHS Status:ROHS3 Compliant
- Lead Free:Lead Free
在庫數 100
- 1+: $3.84008
- 10+: $3.62272
- 100+: $3.41766
- 500+: $3.22421
- 1000+: $3.04170
小計金額 $3.84008
