ADS7824UB

Texas Instruments
Data Acquisition - Analog to Digital Converters (ADC)
28-SOIC (0.295, 7.50mm Width)
IC 12-BIT 4-CH SMPL A/D 28-SOIC
Date Sheet

在庫數 65

1+： $79.93730
10+： $75.41255
100+： $71.14391
500+： $67.11690
1000+： $63.31783

小計金額 $79.93730

仕様よくある質問

Factory Lead Time：6 Weeks
Contact Plating：Gold
Mounting Type：Surface Mount
Package / Case：28-SOIC (0.295, 7.50mm Width)
Surface Mount：YES
Number of Pins：28
Power Dissipation (Max)：50mW
Current - Supply (Nom)：100mA
Number of Elements：1
Operating Temperature：-40°C~85°C
Packaging：Tube
JESD-609 Code：e4
Pbfree Code：yes
Part Status：ACTIVE (Last Updated: 3 days ago)
Moisture Sensitivity Level (MSL)：3 (168 Hours)
Number of Terminations：28
ECCN Code：EAR99
Voltage - Supply：5V
Terminal Position：DUAL
Terminal Form：GULL WING
Peak Reflow Temperature (Cel)：260
Number of Functions：1
Base Part Number：ADS7824
Polarity：Bipolar
Power Supplies：5V
Configuration：S/H-ADC
Number of Channels：4
Interface：Parallel, Serial
Power Dissipation：50mW
Number of Bits：12
Input Type：Single Ended
Architecture：SAR
Converter Type：ADC, SUCCESSIVE APPROXIMATION
Supply Type：Single
Reference Type：External, Internal
Data Interface：SPI, Parallel
Resolution：1.5 B
Sampling Rate：40 ksps
Number of Analog In Channels：4
Sampling Rate (Per Second)：40k
Output Bit Code：2'S COMPLEMENT BINARY
Power Consumption：50mW
Integral Nonlinearity (INL)：0.5 LSB
Sample and Hold / Track and Hold：SAMPLE
Number of A/D Converters：1
Conversion Rate：40 ksps
Ratio - S/H:ADC：1:1
Output Format：SERIAL, PARALLEL, 8 BITS
Signal to Noise Ratio (SNR)：73 dB
Max Supply Voltage (DC)：5.25V
Differential Nonlinearity：0.5 LSB
Min Supply Voltage (DC)：4.75V
Voltage - Supply (Max)：5.25V
Voltage - Supply (Min)：4.75V
Spurious-free dynamic range (SFDR)：90 dB
Height：2.65mm
Length：17.9mm
Width：7.5mm
Thickness：2.35mm
Radiation Hardening：No
RoHS Status：ROHS3 Compliant
Lead Free：Lead Free

在庫數 65

1+： $79.93730
10+： $75.41255
100+： $71.14391
500+： $67.11690
1000+： $63.31783

小計金額 $79.93730

類似スペック製品

ADS7824UB Texas Instruments
最低価格$79.937301 在庫數 65
MX574AJCWI Maxim Integrated
最低価格$31.029246 在庫數 3137
ADS8506IBDW Texas Instruments
最低価格$7.840868 在庫數 93
ADS8506IBDWR Texas Instruments
最低価格$13.396815 在庫數 936

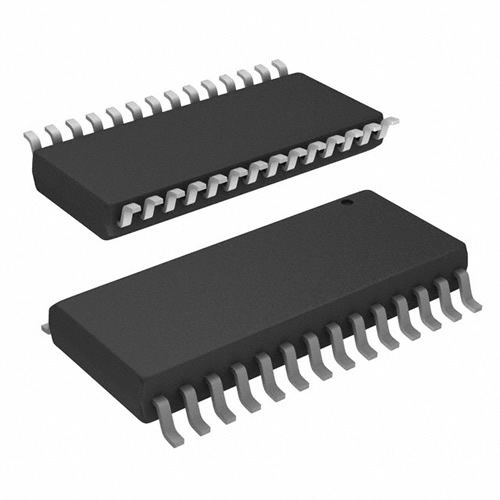

ADS8506IBDWG4 Texas Instruments
