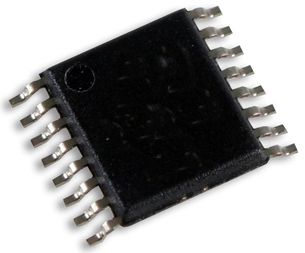

画像はあくまで参考です。
MAX4582CEE
-
Maxim Integrated
-
Interface - Analog Switches, Multiplexers, Demultiplexers
- 16-SSOP (0.154, 3.90mm Width)
- IC MULTIPLEXER DUAL 4X1 16QSOP
Date Sheet
在庫數 4000
- 1+： $5.45731
- 10+： $5.14841
- 100+： $4.85699
- 500+： $4.58207
- 1000+： $4.32270
小計金額 $5.45731
仕様 よくある質問
- Factory Lead Time：6 Weeks
- Mounting Type：Surface Mount
- Package / Case：16-SSOP (0.154, 3.90mm Width)
- Surface Mount：YES
- Number of Pins：16
- Operating Temperature：0°C~70°C TA
- Packaging：Tube
- Published：1995
- JESD-609 Code：e3
- Pbfree Code：yes
- Part Status：Active
- Moisture Sensitivity Level (MSL)：1 (Unlimited)
- Number of Terminations：16
- ECCN Code：EAR99
- Terminal Finish：Matte Tin (Sn)
- Voltage - Supply：5V
- Terminal Position：DUAL
- Terminal Form：GULL WING
- Peak Reflow Temperature (Cel)：260
- Number of Functions：1
- Terminal Pitch：0.635mm
- Time@Peak Reflow Temperature-Max (s)：NOT SPECIFIED
- Base Part Number：MAX4582
- JESD-30 Code：R-PDSO-G16
- Qualification Status：Not Qualified
- Power Supplies：3/5/+-5V
- Number of Channels：4
- Number of Circuits：2
- Analog IC - Other Type：DIFFERENTIAL MULTIPLEXER
- Voltage - Supply, Single/Dual (±)：2V~12V ±2V~6V
- Supply Current-Max (Isup)：0.01mA
- Neg Supply Voltage-Nom (Vsup)：-5V
- On-State Resistance (Max)：80Ohm
- Multiplexer/Demultiplexer Circuit：4:1
- Off-state Isolation-Nom：73 dB
- Current - Leakage (IS(off)) (Max)：1nA
- Channel Capacitance (CS(off), CD(off))：4pF 10pF
- On-state Resistance Match-Nom：1Ohm
- Switch Circuit：SP4T
- Switch Time (Ton, Toff) (Max)：200ns, 100ns
- Charge Injection：0.5pC
- Channel-to-Channel Matching (ΔRon)：1 Ω
- Switching：BREAK-BEFORE-MAKE
- Switch-off Time-Max：100ns
- Length：4.89mm
- Height Seated (Max)：1.73mm
- Width：3.9mm
- RoHS Status：ROHS3 Compliant
在庫數 4000
- 1+： $5.45731
- 10+： $5.14841
- 100+： $4.85699
- 500+： $4.58207
- 1000+： $4.32270
小計金額 $5.45731
