TLC2201CD

Texas Instruments
Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps

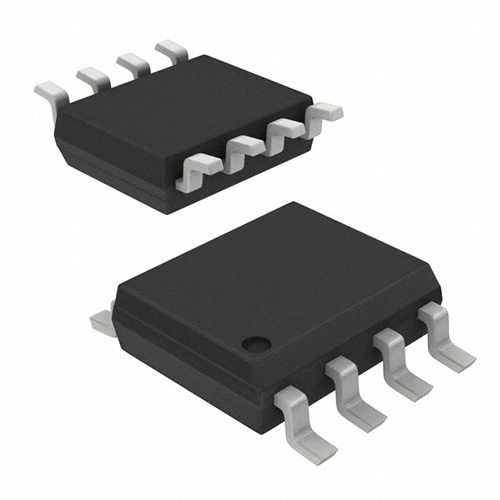

8-SOIC (0.154, 3.90mm Width)
Low Noise Precision ail-To- ail Output Operational Amplifier 8-SOIC 0 to 70
Date Sheet

在庫數 6

小計金額 $0.00000

仕様よくある質問

Lifecycle Status：ACTIVE (Last Updated: 1 day ago)
Factory Lead Time：6 Weeks
Mounting Type：Surface Mount
Package / Case：8-SOIC (0.154, 3.90mm Width)
Surface Mount：YES
Number of Pins：8
Operating Temperature：0°C~70°C
Packaging：Tube
Series：LinCMOS™
JESD-609 Code：e4
Pbfree Code：yes
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Number of Terminations：8
ECCN Code：EAR99
Terminal Finish：Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Position：DUAL
Terminal Form：GULL WING
Peak Reflow Temperature (Cel)：260
Number of Functions：1
Supply Voltage：5V
Base Part Number：TLC2201
Pin Count：8
Output Type：Rail-to-Rail
Operating Supply Voltage：8V
Number of Channels：1
Operating Supply Current：1.1mA
Nominal Supply Current：1.5mA
Power Dissipation：725mW
Output Current：50mA
Slew Rate：2.7V/μs
Architecture：VOLTAGE-FEEDBACK
Amplifier Type：General Purpose
Common Mode Rejection Ratio：85 dB
Current - Input Bias：1pA
Voltage - Supply, Single/Dual (±)：4.6V~16V ±2.3V~8V
Output Current per Channel：50mA
Input Offset Voltage (Vos)：500μV
Bandwidth：1.9MHz
Neg Supply Voltage-Nom (Vsup)：-5V
Unity Gain BW-Nom：1900 kHz
Voltage Gain：109.97dB
Low-Offset：YES
Frequency Compensation：YES
Supply Voltage Limit-Max：8V
Voltage - Input Offset：100μV
Low-Bias：YES
Micropower：NO
Programmable Power：NO
Dual Supply Voltage：5V
Nominal Gain Bandwidth Product：1.9MHz
Max I/O Voltage：500μV
Input Offset Current-Max (IIO)：0.00006μA
Height：1.75mm
Length：4.9mm
Width：3.91mm
Thickness：1.58mm
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：ROHS3 Compliant
Lead Free：Lead Free
