CLT-105-02-F-D-A

Samtec Inc.
Rectangular Connectors - Headers, Receptacles, Female Sockets
Conn Socket Strip SKT 10 POS 2mm Solder ST SMD Tube
Date Sheet

在庫數 524

1+： $1.27501
10+： $1.20284
100+： $1.13475
500+： $1.07052
1000+： $1.00993

小計金額 $1.27501

仕様よくある質問

Factory Lead Time：3 Weeks
Mounting Type：Surface Mount
Contact Shape：Square
Housing Material：Polymer
Contact Finish Mating：Gold
Contact Materials：Phosphor Bronze
Insulation Materials：Liquid Crystal Polymer (LCP)
Operating Temperature：-55°C~125°C
Packaging：Tube
Series：CLT
Published：2013
JESD-609 Code：e3
Pbfree Code：yes
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder
ECCN Code：EAR99
Connector Type：Receptacle
Number of Positions：10
Number of Rows：2
Gender：Female
Additional Feature：E.L.P., LOW PROFILE, TIGER CLAW CONTACT
HTS Code：8536.69.40.40
Fastening Type：Push-Pull
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Contact Type：Female Socket
Mixed Contacts：NO
Option：GENERAL PURPOSE
Current Rating (Amps)：4.1A per Contact
Orientation：Straight
Depth：4mm
Insulation Height：0.083 2.10mm
Style：Board to Board
Number of Positions Loaded：All
Pitch - Mating：0.079 inch
Insulation Color：Black
Military Standard：NO
Number of Conductors：ONE
Reference Standard：UL
Reliability：COMMERCIAL
Row Spacing - Mating：0.079 (2.00mm)
Number of Contacts：10
Contact Finish - Post：Tin
PCB Contact Pattern：RECTANGULAR
Body Breadth：0.157 inch
UL Flammability Code：UL94 V-0
Contact Resistance：10mOhm
Insertion Force-Max：.5004 N
Withdrawl Force-Min：.1668 N
Current Rating (Max)：2A
Features：Board Guide
Length：10mm
Plating Thickness：FLASH inch
Contact Finish Thickness - Mating：3.00μin 0.076μm
Radiation Hardening：No
RoHS Status：ROHS3 Compliant

在庫數 524

1+： $1.27501
10+： $1.20284
100+： $1.13475
500+： $1.07052
1000+： $1.00993

小計金額 $1.27501

類似スペック製品

CLT-105-02-F-D-A Samtec Inc.
最低価格$1.2750084 在庫數 524
SQT-105-01-F-D Samtec Inc.
最低価格$1.471091 在庫數 1208
MMS-105-02-L-DV-P-TR Samtec Inc.
最低価格$3.2289498 在庫數 564

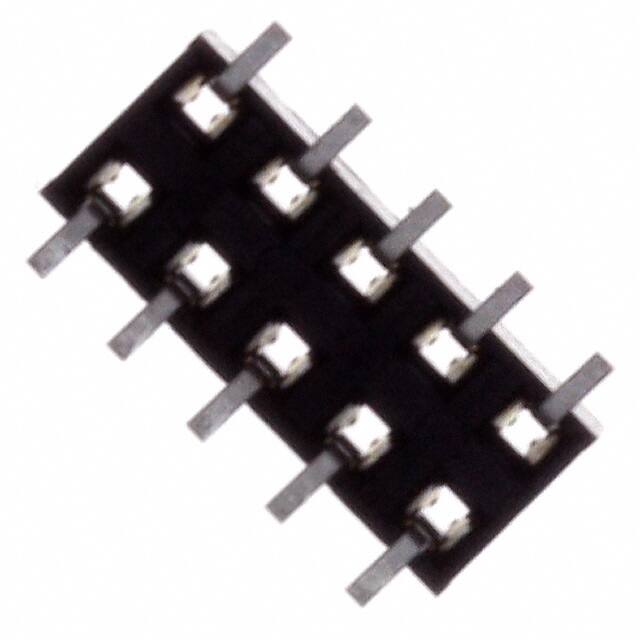

55510-110LF Amphenol ICC (FCI)
