FLE-113-01-G-DV-A-P

Samtec Inc.
Rectangular Connectors - Headers, Receptacles, Female Sockets
CONN SKT 1.27MM 26POS DUAL SMD
Date Sheet

在庫數 21

1+： $3.14008
10+： $2.96234
100+： $2.79466
500+： $2.63647
1000+： $2.48724

小計金額 $3.14008

仕様よくある質問

Factory Lead Time：3 Weeks
Mount：Surface Mount
Mounting Type：Surface Mount
Contact Shape：Square
Housing Material：Polymer
Contact Finish Mating：Gold
Contact Materials：Phosphor Bronze
Insulation Materials：Liquid Crystal Polymer (LCP)
Operating Temperature：-55°C~125°C
Packaging：Tube
Series：FLE
Published：2015
JESD-609 Code：e4
Pbfree Code：yes
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder
ECCN Code：EAR99
Connector Type：Receptacle
Number of Positions：26
Number of Rows：2
Additional Feature：METAL PICK&PLACE PAD
HTS Code：8536.69.40.40
Fastening Type：Push-Pull
Contact Type：Female Socket
Current Rating (Amps)：2A per Contact
Total Number of Contacts：26
Orientation：Straight
Depth：3.33mm
Insulation Height：0.172 4.37mm
Style：Board to Board or Cable
Number of Positions Loaded：All
Pitch - Mating：0.050 1.27mm
Number of Conductors：ONE
Reference Standard：UL, CSA
Reliability：COMMERCIAL
Row Spacing - Mating：0.050 (1.27mm)
Number Of PCB Rows：2
PCB Contact Pattern：RECTANGULAR
Body Breadth：0.131 inch
Housing Color：Black
Contact Resistance：15mOhm
Mating Contact Pitch：0.05 inch
Max Current Rating：1.75A
PCB Contact Row Spacing：3.81 mm
Durability：100 Cycles
Insertion Force-Max：.417 N
Withdrawl Force-Min：.417 N
Features：Board Guide, Pick and Place
Length：16.62mm
Plating Thickness：10μin
Contact Finish Thickness - Mating：10.0μin 0.25μm
Contact Finish Thickness - Post：3.00μin 0.076μm
RoHS Status：ROHS3 Compliant

在庫數 21

1+： $3.14008
10+： $2.96234
100+： $2.79466
500+： $2.63647
1000+： $2.48724

小計金額 $3.14008

類似スペック製品

FLE-113-01-G-DV-A-P Samtec Inc.
最低価格$3.1400811 在庫數 21
CLP-110-02-F-D-A Samtec Inc.
最低価格$2.887754 在庫數 39680
CLP-113-02-F-D-P Samtec Inc.
最低価格$3.1699026 在庫數 99

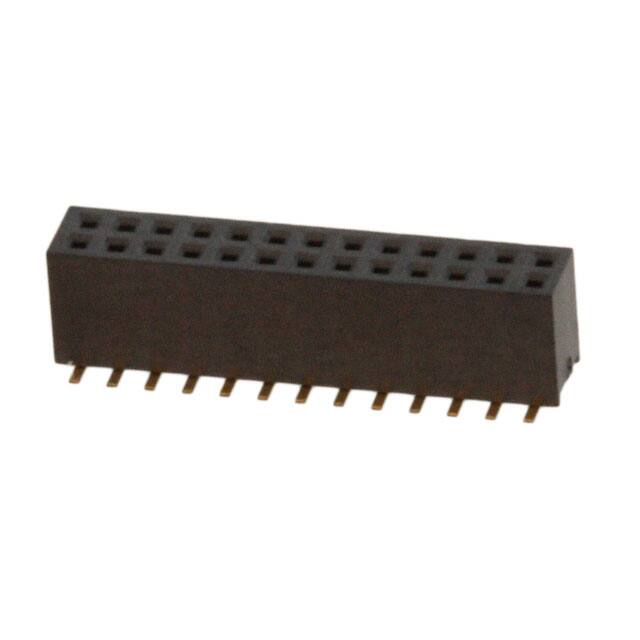

20021321-00026T4LF Amphenol ICC (FCI)
