ESQ-106-44-S-D

Samtec Inc.
Rectangular Connectors - Headers, Receptacles, Female Sockets
Conn Elevated Socket SKT 12 POS 2.54mm Solder ST Thru-Hole Tube
Date Sheet

在庫數 123

1+： $2.59144
10+： $2.44475
100+： $2.30637
500+： $2.17582
1000+： $2.05266

小計金額 $2.59144

仕様よくある質問

Factory Lead Time：3 Weeks
Mounting Type：Through Hole
Contact Shape：Square
Contact Finish Mating：Gold
Contact Materials：Phosphor Bronze
Insulation Materials：Liquid Crystal Polymer (LCP)
Voltage - Rated (AC)：550V
Voltage Rated：550VAC
Operating Temperature：-55°C~125°C
Packaging：Tube
Series：ESQ
Published：2011
JESD-609 Code：e3
Pbfree Code：yes
Part Status：Active
Moisture Sensitivity Level (MSL)：Not Applicable
Termination：Solder
ECCN Code：EAR99
Connector Type：Elevated Socket
Number of Positions：12
Number of Rows：2
Gender：Receptacle
Additional Feature：TIGER BUY CONTACT
HTS Code：8536.69.40.40
Fastening Type：Push-Pull
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Contact Type：Forked
Mixed Contacts：NO
Option：GENERAL PURPOSE
Current Rating (Amps)：5.7A per Contact
Orientation：Straight
Insulation Height：0.735 18.67mm
Style：Board to Board
Number of Positions Loaded：All
Pitch - Mating：0.1 inch
Insulation Color：Black
Military Standard：NO
Number of Conductors：ONE
Reference Standard：UL, CSA
Reliability：COMMERCIAL
Row Spacing - Mating：0.100 (2.54mm)
Contact Length - Post：0.180 4.57mm
Contact Finish - Post：Tin
PCB Contact Pattern：RECTANGULAR
Body Breadth：0.195 inch
UL Flammability Code：UL94 V-0
Body Depth：0.735 inch
Contact Resistance：10mOhm
Insertion Force-Max：1.668 N
Withdrawl Force-Min：1.39 N
Current Rating (Max)：6.9A
Plating Thickness：30μin
Contact Finish Thickness - Mating：30.0μin 0.76μm
Length - Termination：0.18 inch
Radiation Hardening：No
RoHS Status：ROHS3 Compliant

在庫數 123

1+： $2.59144
10+： $2.44475
100+： $2.30637
500+： $2.17582
1000+： $2.05266

小計金額 $2.59144

類似スペック製品

ESQ-106-44-S-D Samtec Inc.
最低価格$2.5914366 在庫數 123

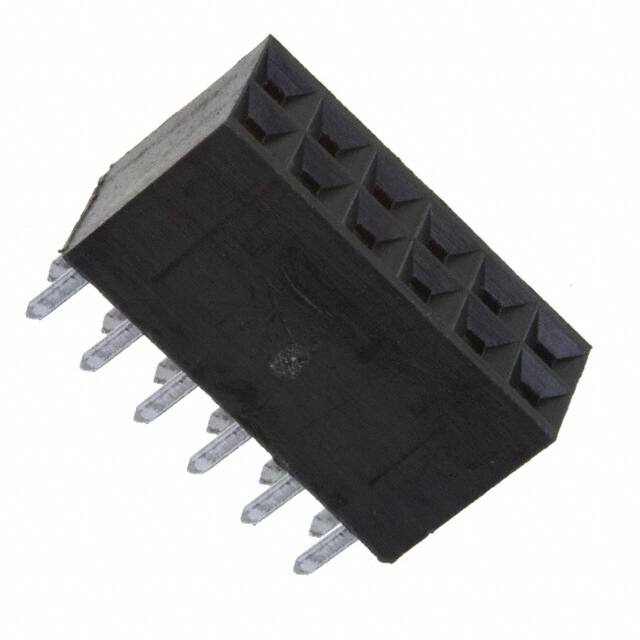

66953-006LF Amphenol ICC (FCI)
