CLT-104-02-F-D-BE-A-P-TR

Samtec Inc.
Rectangular Connectors - Headers, Receptacles, Female Sockets
CONN RCPT 8POS 0.079 GOLD SMD
Date Sheet

在庫數 314

1+： $1.85900
10+： $1.75377
100+： $1.65450
500+： $1.56085
1000+： $1.47250

小計金額 $1.85900

仕様よくある質問

Factory Lead Time：3 Weeks
Mount：Surface Mount
Mounting Type：Surface Mount
Contact Shape：Square
Housing Material：Polymer
Contact Finish Mating：Gold
Contact Materials：Phosphor Bronze
Insulation Materials：Liquid Crystal Polymer (LCP)
Operating Temperature：-55°C~125°C
Packaging：Tape & Reel (TR)
Series：CLT
Published：2009
JESD-609 Code：e3
Pbfree Code：yes
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder
Connector Type：Receptacle, Bottom Entry
Number of Positions：8
Number of Rows：2
Gender：Female
Additional Feature：BOTTOM ENTRY, E.L.P., LOW PROFILE, TIGER CLAW CONTACT
Fastening Type：Push-Pull
MIL Conformance：NO
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Contact Type：Female Socket
Mixed Contacts：NO
Option：GENERAL PURPOSE
Current Rating (Amps)：4.1A per Contact
Total Number of Contacts：8
Orientation：Straight
Depth：5.16mm
Insulation Height：0.083 2.10mm
Style：Board to Board
Number of Positions Loaded：All
Pitch - Mating：0.079 2.00mm
Number of Conductors：ONE
Reference Standard：UL
Reliability：COMMERCIAL
Row Spacing - Mating：0.079 (2.00mm)
Number Of PCB Rows：2
Contact Finish - Post：Tin
PCB Contact Pattern：RECTANGULAR
Body Breadth：0.157 inch
Housing Color：Black
Contact Resistance：10mOhm
Mating Contact Pitch：0.079 inch
Max Current Rating：3.3A
Durability：100 Cycles
Insertion Force-Max：.5004 N
Features：Board Guide, Pick and Place
Length：8mm
Plating Thickness：FLASH inch
Contact Finish Thickness - Mating：3.00μin 0.076μm
Material Flammability Rating：UL94 V-0
Radiation Hardening：No
RoHS Status：ROHS3 Compliant

在庫數 314

1+： $1.85900
10+： $1.75377
100+： $1.65450
500+： $1.56085
1000+： $1.47250

小計金額 $1.85900

類似スペック製品

CLT-104-02-F-D-BE-A-P-TR Samtec Inc.
最低価格$1.8589986 在庫數 314
A3A-8DA-2SV(71) Hirose Electric Co Ltd
最低価格$1.111383 在庫數 7961

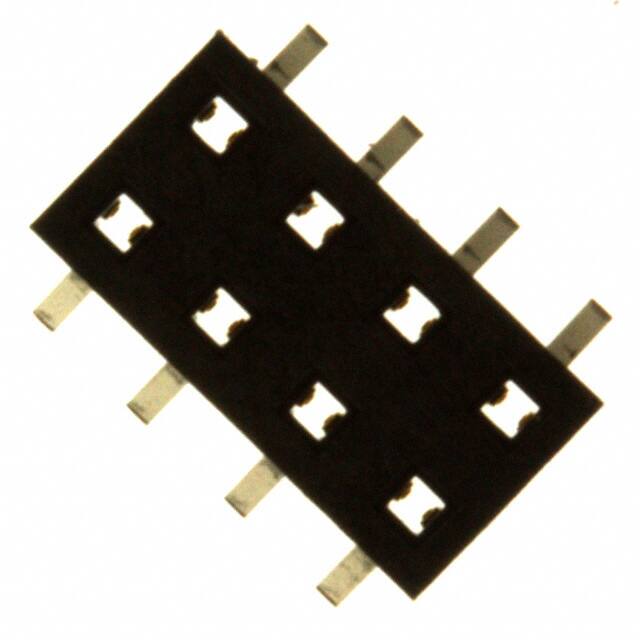

55510-108LF Amphenol ICC (FCI)
最低価格$1.337738 在庫數 10000

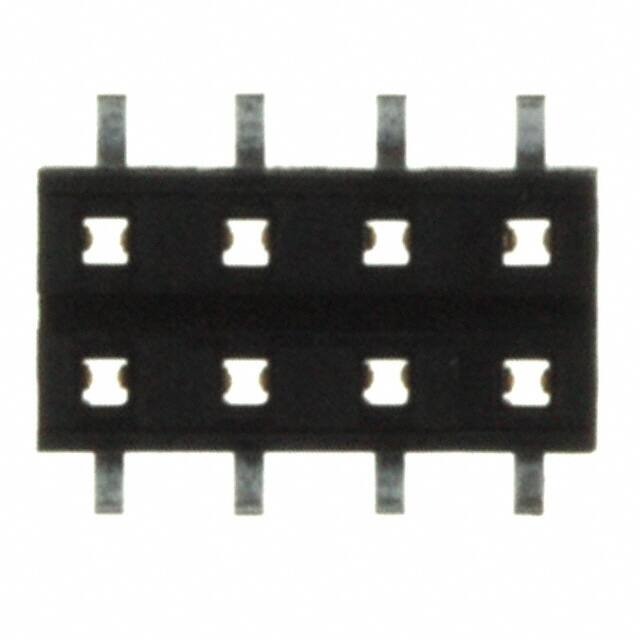

55508-108LF Amphenol ICC (FCI)
