Home Connectors, Interconnects Rectangular Connectors - Headers, Receptacles, Female Sockets CES-128-01-T-S

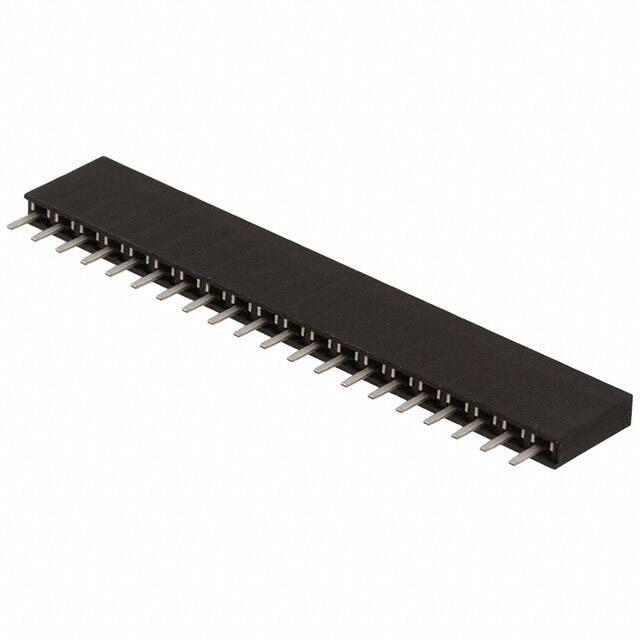

画像はあくまで参考です。
CES-128-01-T-S
-
Samtec Inc.
-
Rectangular Connectors - Headers, Receptacles, Female Sockets
- SAMTEC CES-128-01-T-S Board-To-Board Connector, Single, CES Series, 28 Contacts, Receptacle, 2.54 mm, Through Hole
Date Sheet
在庫數 17
- 1+： $2.49314
- 10+： $2.35202
- 100+： $2.21889
- 500+： $2.09329
- 1000+： $1.97480
小計金額 $2.49314
仕様 よくある質問
- Mount：Through Hole
- Mounting Type：Through Hole
- Contact Shape：Square
- Housing Material：Plastic
- Contact Finish Mating：Tin
- Contact Materials：Phosphor Bronze
- Insulation Materials：Polybutylene Terephthalate (PBT)
- Voltage Rated：333V
- Operating Temperature：-55°C~105°C
- Packaging：Bulk
- Series：CES
- Published：2000
- JESD-609 Code：e3
- Pbfree Code：yes
- Part Status：Active
- Moisture Sensitivity Level (MSL)：1 (Unlimited)
- Termination：Solder
- ECCN Code：EAR99
- Connector Type：Receptacle
- Number of Positions：28
- Number of Rows：1
- Additional Feature：LOW PROFILE
- HTS Code：8536.69.40.40
- Fastening Type：Push-Pull
- MIL Conformance：NO
- DIN Conformance：NO
- IEC Conformance：NO
- Filter Feature：NO
- Contact Type：Female Socket
- Mixed Contacts：NO
- Option：GENERAL PURPOSE
- Orientation：Straight
- Terminal Pitch：2.54mm
- Insulation Height：0.200 5.08mm
- Style：Board to Board
- Number of Positions Loaded：All
- Current Rating：1A
- Pitch - Mating：0.100 2.54mm
- Number of Conductors：ONE
- Reference Standard：UL, CSA
- Reliability：COMMERCIAL
- Body Length or Diameter：2.8 inch
- Contact Length - Post：0.128 3.25mm
- Number Of PCB Rows：1
- PCB Contact Pattern：RECTANGULAR
- UL Flammability Code：94V-0
- Housing Color：Black
- Body Depth：0.2 inch
- Rated Current (Signal)：1A
- Polarization Key：POLARIZED HOUSING
- Insertion Force-Max：2.224 N
- Material Flammability Rating：UL94 V-0
- REACH SVHC：No SVHC
- RoHS Status：ROHS3 Compliant
- Lead Free：Lead Free
在庫數 17
- 1+： $2.49314
- 10+： $2.35202
- 100+： $2.21889
- 500+： $2.09329
- 1000+： $1.97480
小計金額 $2.49314
