Home Connectors, Interconnects Rectangular Connectors - Headers, Receptacles, Female Sockets SSW-134-02-T-S

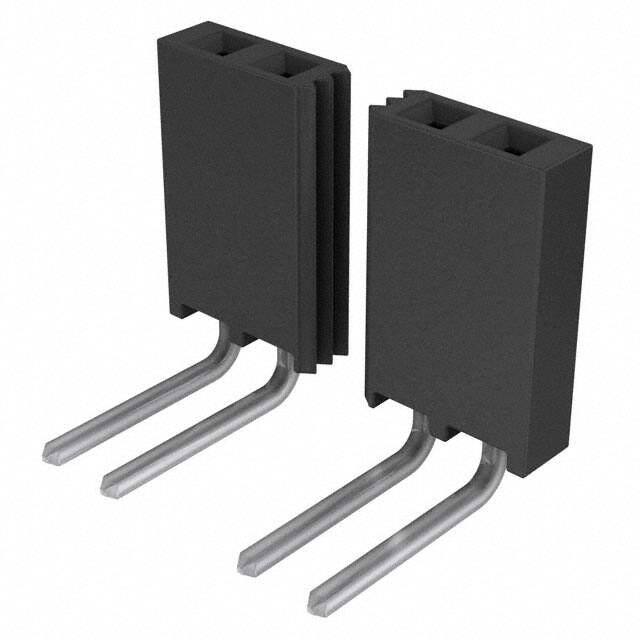

画像はあくまで参考です。
SSW-134-02-T-S
-
Samtec Inc.
-
Rectangular Connectors - Headers, Receptacles, Female Sockets
- CONN RCPT .100 34POS SNGL TIN
Date Sheet
在庫數 44
小計金額 $0.00000
仕様 よくある質問
- Mounting Type：Through Hole
- Mount：Through Hole
- Contact Shape：Square
- Housing Material：Plastic
- Contact Finish Mating：Tin
- Insulation Materials：Liquid Crystal Polymer (LCP)
- Contact Materials：Phosphor Bronze
- Published：2000
- Series：SSW
- Packaging：Bulk
- Operating Temperature：-55°C~105°C
- JESD-609 Code：e3
- Pbfree Code：yes
- Part Status：Active
- Moisture Sensitivity Level (MSL)：Not Applicable
- Termination：Solder
- ECCN Code：EAR99
- Connector Type：Receptacle
- Number of Positions：34
- Number of Rows：1
- Gender：Female
- Additional Feature：TIGER BUY CONTACT
- HTS Code：8536.69.40.40
- Fastening Type：Push-Pull
- Voltage - Rated DC：655V
- MIL Conformance：NO
- DIN Conformance：NO
- IEC Conformance：NO
- Filter Feature：NO
- Contact Type：Forked
- Mixed Contacts：NO
- Option：GENERAL PURPOSE
- Current Rating (Amps)：5.7A per Contact
- Insulation Height：0.335 8.51mm
- Style：Board to Board or Cable
- Number of Positions Loaded：All
- Pitch - Mating：0.100 2.54mm
- Number of Conductors：ONE
- Reference Standard：UL, CSA
- Voltage - Rated AC：465V
- Reliability：COMMERCIAL
- Contact Length - Post：0.194 4.93mm
- Number Of PCB Rows：1
- Lead Pitch：2.54mm
- PCB Contact Pattern：RECTANGULAR
- Body Breadth：0.095 inch
- UL Flammability Code：94V-0
- Housing Color：Black
- Body Depth：0.335 inch
- Polarization Key：POLARIZED HOUSING
- Width：2.41mm
- Length：86.9mm
- Height：8.51mm
- RoHS Status：ROHS3 Compliant
- Material Flammability Rating：UL94 V-0
- Lead Free：Lead Free
