FLE-115-01-G-DV

Samtec Inc.
Rectangular Connectors - Headers, Receptacles, Female Sockets
SAMTEC FLE-115-01-G-DV Board-To-Board Connector, FLE Series, 30 Contacts, Receptacle, 1.27 mm, Surface Mount, 2 Rows
Date Sheet

在庫數 275

1+： $3.50889
10+： $3.31028
100+： $3.12290
500+： $2.94613
1000+： $2.77937

小計金額 $3.50889

仕様よくある質問

Factory Lead Time：1 Weeks
Mounting Type：Surface Mount
Contact Shape：Square
Housing Material：Polymer
Contact Finish Mating：Gold
Contact Materials：Phosphor Bronze
Insulation Materials：Liquid Crystal Polymer (LCP)
Operating Temperature：-55°C~125°C
Packaging：Bulk
Series：FLE
Published：2009
JESD-609 Code：e4
Pbfree Code：yes
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder
Connector Type：Receptacle
Number of Positions：30
Number of Rows：2
Additional Feature：E.L.P., TIGER BEAM CONTACT
Fastening Type：Push-Pull
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Contact Type：Female Socket
Mixed Contacts：NO
Option：GENERAL PURPOSE
Current Rating (Amps)：2A per Contact
Orientation：Straight
Depth：4.6mm
Insulation Height：0.172 4.37mm
Style：Board to Board or Cable
Number of Positions Loaded：All
Pitch - Mating：0.05 inch
Military Standard：NO
Number of Conductors：ONE
Reference Standard：UL, CSA
Reliability：COMMERCIAL
Row Spacing - Mating：0.050 (1.27mm)
Number of Contacts：30
PCB Contact Pattern：RECTANGULAR
Mating Information：MULTIPLE MATING PARTS AVAILABLE
Body Breadth：0.131 inch
Housing Color：Black
Contact Resistance：15mOhm
Row Spacing：3.81 mm
Durability：100 Cycles
Insertion Force-Max：.417 N
Withdrawl Force-Min：.417 N
Current Rating (Max)：1.75A
Length：19.16mm
Width：3.33mm
Plating Thickness：10μin
Contact Finish Thickness - Mating：10.0μin 0.25μm
Contact Finish Thickness - Post：3.00μin 0.076μm
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：ROHS3 Compliant
Lead Free：Lead Free

在庫數 275

1+： $3.50889
10+： $3.31028
100+： $3.12290
500+： $2.94613
1000+： $2.77937

小計金額 $3.50889

類似スペック製品

FLE-115-01-G-DV Samtec Inc.
最低価格$3.508892 在庫數 275

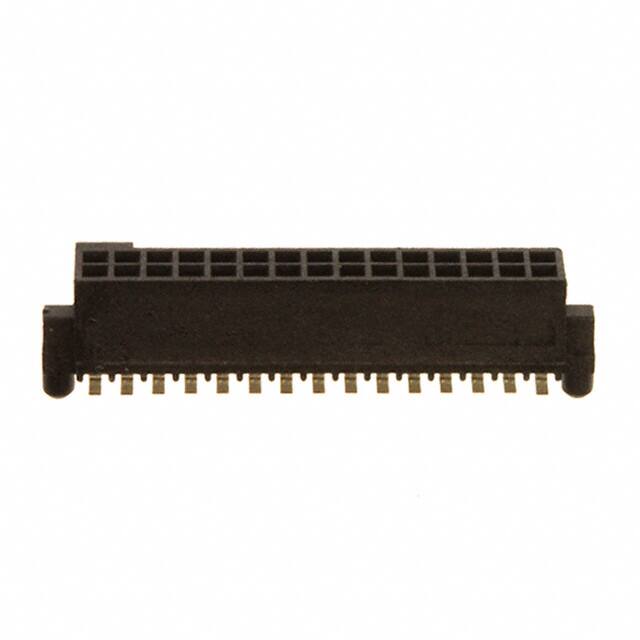

87024-615LF Amphenol ICC (FCI)
