Home Connectors, Interconnects Rectangular Connectors - Headers, Receptacles, Female Sockets SSQ-134-23-S-D

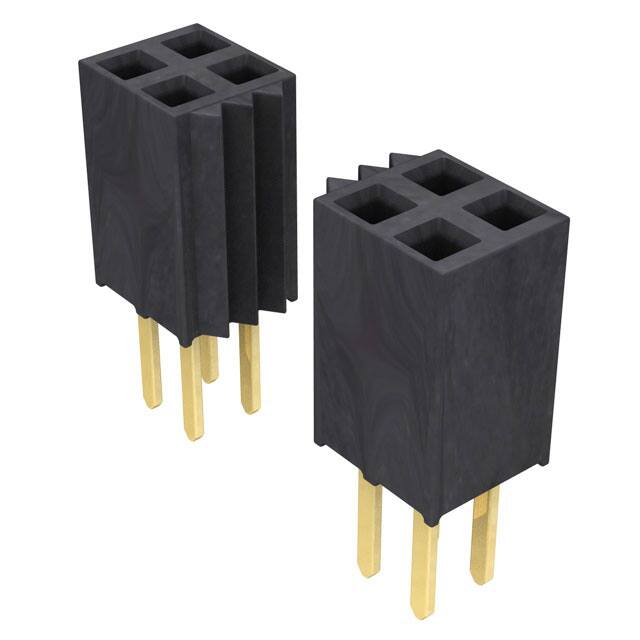

画像はあくまで参考です。
SSQ-134-23-S-D
-
Samtec Inc.
-
Rectangular Connectors - Headers, Receptacles, Female Sockets
- Conn Socket Strip SKT 68 POS 2.54mm Solder ST Thru-Hole
Date Sheet
在庫數 10
小計金額 $0.00000
仕様 よくある質問
- Factory Lead Time：3 Weeks
- Mount：Through Hole
- Mounting Type：Through Hole
- Contact Shape：Square
- Contact Finish Mating：Gold
- Contact Materials：Phosphor Bronze
- Insulation Materials：Liquid Crystal Polymer (LCP)
- Voltage Rated：550VAC
- Operating Temperature：-55°C~125°C
- Packaging：Bulk
- Series：SSQ
- JESD-609 Code：e3
- Pbfree Code：yes
- Part Status：Active
- Termination：Solder
- ECCN Code：EAR99
- Connector Type：Receptacle
- Number of Positions：68
- Number of Rows：2
- Gender：Female
- Additional Feature：LOW INSERTION FORCE; TIGER BUY CONTACT
- HTS Code：8536.69.40.40
- Fastening Type：Push-Pull
- MIL Conformance：NO
- DIN Conformance：NO
- IEC Conformance：NO
- Filter Feature：NO
- Contact Type：Forked
- Mixed Contacts：NO
- Option：GENERAL PURPOSE
- Current Rating (Amps)：6.3A per Contact
- Insulation Height：0.335 8.51mm
- Style：Board to Board or Cable
- Number of Positions Loaded：All
- Pitch - Mating：0.100 2.54mm
- Insulation Color：Black
- Number of Conductors：ONE
- Reference Standard：UL, CSA
- Reliability：COMMERCIAL
- Row Spacing - Mating：0.100 (2.54mm)
- Contact Length - Post：0.394 10.00mm
- Number Of PCB Rows：2
- Contact Finish - Post：Tin
- PCB Contact Pattern：RECTANGULAR
- Body Breadth：0.195 inch
- Body Depth：0.335 inch
- Contact Resistance：10mOhm
- Mating Contact Pitch：0.1 inch
- Insertion Force-Max：.9174 N
- Withdrawl Force-Min：.7784 N
- Plating Thickness：30μin
- Contact Finish Thickness - Mating：30.0μin 0.76μm
- Length - Termination：0.39 inch
- Material Flammability Rating：UL94 V-0
- RoHS Status：ROHS3 Compliant
