SSM-128-L-DV

Samtec Inc.
Rectangular Connectors - Headers, Receptacles, Female Sockets
SAMTEC SSM-128-L-DV Board-To-Board Connector, SSM Series, 56 Contacts, Receptacle, 2.54 mm, Surface Mount, 2 Rows
Date Sheet

在庫數 42

1+： $6.10212
10+： $5.75672
100+： $5.43087
500+： $5.12346
1000+： $4.83345

小計金額 $6.10212

仕様よくある質問

Mount：Surface Mount
Mounting Type：Surface Mount
Contact Shape：Square
Housing Material：Plastic
Contact Finish Mating：Gold
Contact Materials：Phosphor Bronze
Insulation Materials：Liquid Crystal Polymer (LCP)
Voltage Rated：405VAC 572VDC
Operating Temperature：-55°C~125°C
Packaging：Bulk
Series：SSM
Published：2000
JESD-609 Code：e3
Pbfree Code：yes
Part Status：Active
Termination：Solder
Connector Type：Receptacle, Pass Through
Number of Positions：56
Number of Rows：2
Gender：Receptacle
Additional Feature：E.L.P., TIGER CLAW
Fastening Type：Push-Pull
MIL Conformance：NO
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Contact Type：Female Socket
Mixed Contacts：NO
Option：GENERAL PURPOSE
Current Rating (Amps)：5.2A per Contact
Total Number of Contacts：56
Insulation Height：0.290 7.37mm
Style：Board to Board or Cable
Number of Positions Loaded：All
Pitch - Mating：0.100 2.54mm
Number of Conductors：ONE
Reference Standard：UL
Row Spacing - Mating：0.100 (2.54mm)
Number Of PCB Rows：2
Contact Finish - Post：Tin
PCB Contact Pattern：RECTANGULAR
UL Flammability Code：94V-0
Housing Color：Black
Contact Resistance：10mOhm
Insulation Resistance：5000000000Ohm
Mating Contact Pitch：0.1 inch
Dielectric Withstanding Voltage：1000VAC V
PCB Contact Row Spacing：5.5118 mm
Insertion Force-Max：1.39 N
Height：7.37mm
Length：71.1mm
Width：5.08mm
Plating Thickness：10μin
Contact Finish Thickness - Mating：10.0μin 0.25μm
REACH SVHC：No SVHC
RoHS Status：ROHS3 Compliant
Lead Free：Lead Free

在庫數 42

1+： $6.10212
10+： $5.75672
100+： $5.43087
500+： $5.12346
1000+： $4.83345

小計金額 $6.10212

類似スペック製品

SSM-128-L-DV Samtec Inc.
最低価格$6.1021215 在庫數 42
SSM-121-L-DV Samtec Inc.
最低価格$6.4052568 在庫數 73
SSM-123-L-DV Samtec Inc.
最低価格$5.0214051 在庫數 712

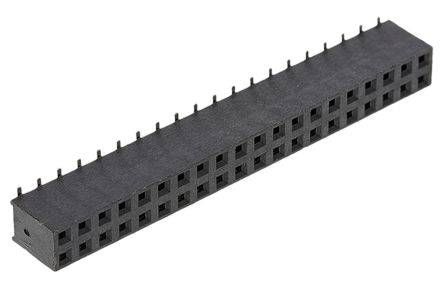

M20-7872042 Harwin Inc.
