CLT-104-02-L-D

Samtec Inc.
Rectangular Connectors - Headers, Receptacles, Female Sockets
CONN RCPT 8POS 0.079 GOLD SMD
Date Sheet

在庫數 57

小計金額 $0.00000

仕様よくある質問

Factory Lead Time：1 Weeks
Mounting Type：Surface Mount
Contact Shape：Square
Housing Material：Polymer
Contact Finish Mating：Gold
Contact Materials：Phosphor Bronze
Insulation Materials：Liquid Crystal Polymer (LCP)
Operating Temperature：-55°C~125°C
Packaging：Tube
Series：CLT
Published：2010
JESD-609 Code：e3
Pbfree Code：yes
Part Status：Discontinued
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder
Connector Type：Receptacle
Number of Positions：8
Number of Rows：2
Additional Feature：E.L.P., TIGER CLAW CONTACT, LOW PROFILE
Fastening Type：Push-Pull
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Contact Type：Female Socket
Mixed Contacts：NO
Option：GENERAL PURPOSE
Current Rating (Amps)：4.1A per Contact
Pitch：2mm
Orientation：Straight
Depth：5.16mm
Insulation Height：0.083 2.10mm
Style：Board to Board
Number of Positions Loaded：All
Pitch - Mating：0.079 inch
Military Standard：NO
Number of Conductors：ONE
Reference Standard：UL
Reliability：COMMERCIAL
Row Spacing - Mating：0.079 (2.00mm)
Number of Contacts：8
Contact Finish - Post：Tin
PCB Contact Pattern：RECTANGULAR
Body Breadth：0.157 inch
UL Flammability Code：UL94 V-0
Housing Color：Black
Contact Resistance：10mOhm
Durability：100 Cycles
Insertion Force-Max：.5004 N
Current Rating (Max)：3.3A
Length：8mm
Width：4mm
Plating Thickness：10μin
Contact Finish Thickness - Mating：10.0μin 0.25μm
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：ROHS3 Compliant
Lead Free：Lead Free

在庫數 57

小計金額 $0.00000

類似スペック製品

CLT-104-02-L-D Samtec Inc.
見積かごへ在庫數 57

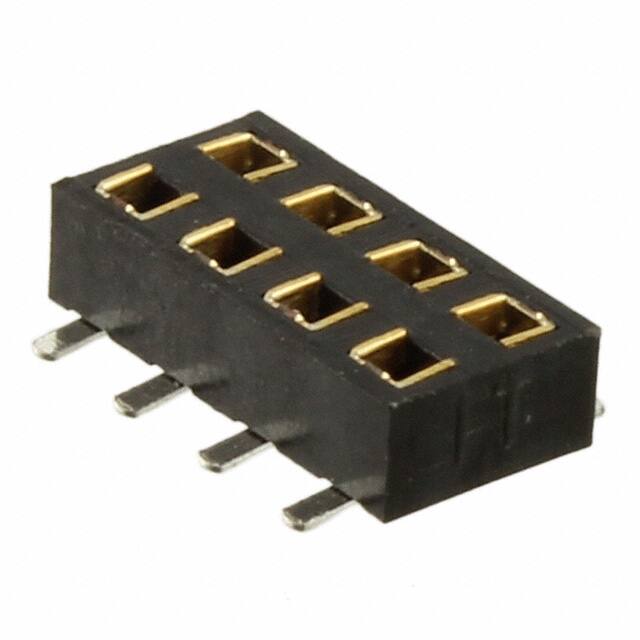

M22-6360442 Harwin Inc.
見積かごへ在庫數 877
SQW-104-01-L-D-VS Samtec Inc.
見積かごへ在庫數 729

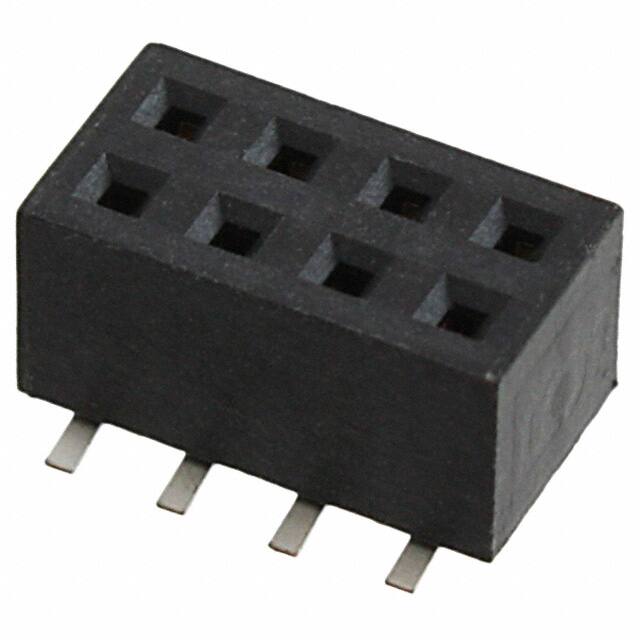

M22-6340442 Harwin Inc.
