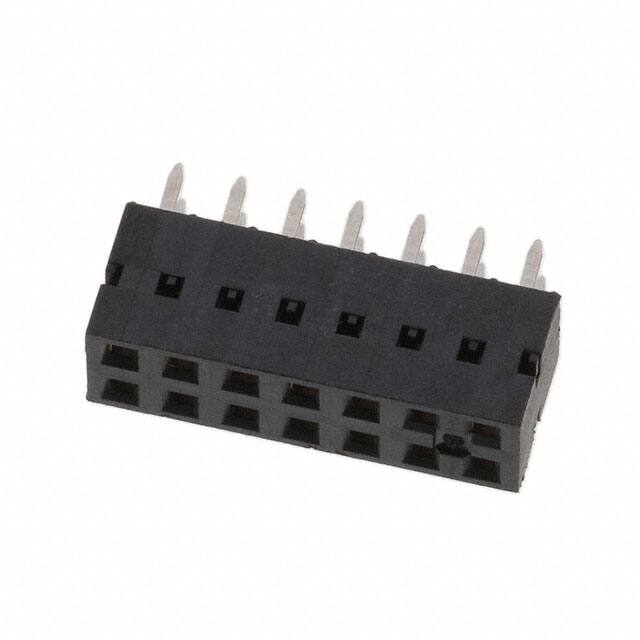

929975-01-07

在庫數 0

小計金額 $0.00000

仕様よくある質問

Contact Plating：Tin
Mount：Through Hole
Mounting Type：Through Hole
Contact Shape：Square
Housing Material：Polyester
Contact Finish Mating：Tin-Lead
Contact Materials：Copper Alloy
Insulation Materials：Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Voltage Rated：1500V
Operating Temperature：-40°C~105°C
Packaging：Bulk
Series：929
Published：2011
Part Status：Obsolete
Moisture Sensitivity Level (MSL)：Not Applicable
Termination：Solder
Connector Type：Receptacle
Number of Positions：14
Max Operating Temperature：105°C
Min Operating Temperature：-40°C
Color：Black
Number of Rows：2
Gender：Female
Fastening Type：Push-Pull
Contact Type：Forked
Current Rating (Amps)：2A
Pitch：2.54mm
Orientation：Straight
Depth：5.08mm
Insulation Height：0.325 8.25mm
Style：Board to Board
Number of Positions Loaded：All
Current Rating：1A
Pitch - Mating：0.100 2.54mm
Insulation Color：Black
Row Spacing - Mating：0.100 (2.54mm)
Contact Length - Post：0.125 3.18mm
Lead Pitch：2.54mm
Number of Contacts：14
Contact Finish - Post：Tin-Lead
Contact Gender：Female
Housing Color：Black
Max Current Rating：2A
Length：17.78mm
Width：5.08mm
Contact Finish Thickness - Mating：100.0μin 2.54μm
Contact Finish Thickness - Post：100.0μin 2.54μm
Material Flammability Rating：UL94 V-0
RoHS Status：Non-RoHS Compliant
Lead Free：Contains Lead
