PT65503

APEM Inc.
DIP Switches
SWITCH ROTARY DIP HEX 150MA 24V
Date Sheet

在庫數 726

1+： $5.45478
10+： $5.14602
100+： $4.85474
500+： $4.57994
1000+： $4.32070

小計金額 $5.45478

仕様よくある質問

Factory Lead Time：8 Weeks
Mount：Through Hole
Mounting Type：Through Hole
Body Material：Thermoplastic
Actuator Material：Polyamide
Terminal Material：BRASS
Contact Materials：Phosphor Bronze
Voltage Rated：24VDC
Operating Temperature：-20°C~70°C
Packaging：Tube
Series：PT65
JESD-609 Code：e3
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：PC Pins
ECCN Code：EAR99
Number of Positions：16
Terminal Finish：Tin (Sn)
Additional Feature：O-RING Si RUBBER ACTUATOR SEAL
HTS Code：8536.50.90.20
Voltage - Rated DC：24V
Pitch：0.100 2.54mm Full
Packing Method：TRAY
Orientation：Straight
Terminal Pitch：2.54mm
Current Rating：400mA
Contact Finish：Gold
Termination Style：PC Pin
Actuator Type：Rotary with Knob
Circuit：Hexadecimal
Contact Resistance：0.08mOhm
Insulation Resistance：100MOhm
Contact Current(DC)-Max：0.4A
Sealing：MOLDED
Max Current Rating：150mA
Number of Poles：1
Throw Configuration：SP16T
Max Voltage Rating (DC)：24V
Mechanical Life：10,000 Cycles
Switch Type：ROTARY CODED SWITCH
Contact Current Rating：150mA
Illumination Type：Illuminated
Contact Timing：BREAK-BEFORE-MAKE
Index Angle：22.5 °
Number of Switch Sections：1
PCB Hole Count：6
Contact Function：ON-OFF
Washable：Yes
Actuator Level：Raised
Solderability：WAVE
Life (Cycles)：10000 cycles
Washability：SOLVENT
Features：Sealed - Flux Protection
Length：0.393 10.00mm
Body Height：6.5mm
Actuator Length：4.4mm
Height Above Board：0.469 11.90mm
REACH SVHC：No SVHC
RoHS Status：ROHS3 Compliant
Flammability Rating：UL94 V-0

在庫數 726

1+： $5.45478
10+： $5.14602
100+： $4.85474
500+： $4.57994
1000+： $4.32070

小計金額 $5.45478

類似スペック製品

PT65503 APEM Inc.
最低価格$5.4547839 在庫數 726

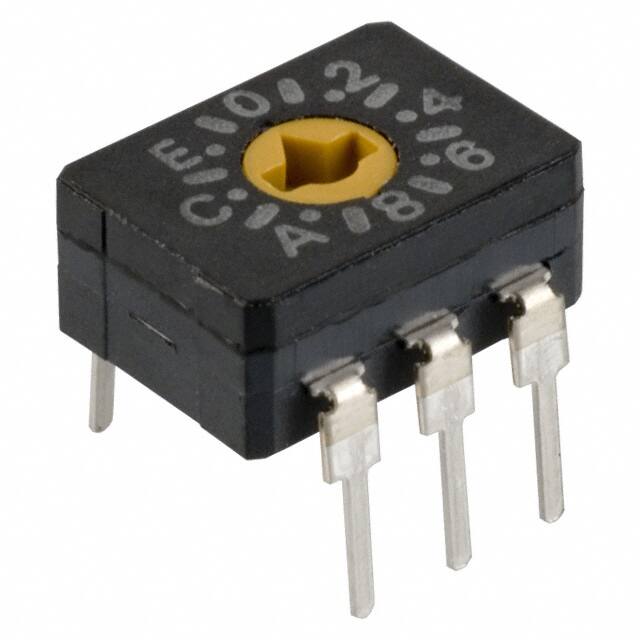

A6C-16R(N) Omron Electronics Inc-EMC Div
最低価格$7.042986 在庫數 21500
P36103 APEM Inc.
最低価格$5.355937 在庫數 88
A6A-16R Omron Electronics Inc-EMC Div
最低価格$5.110928 在庫數 21500

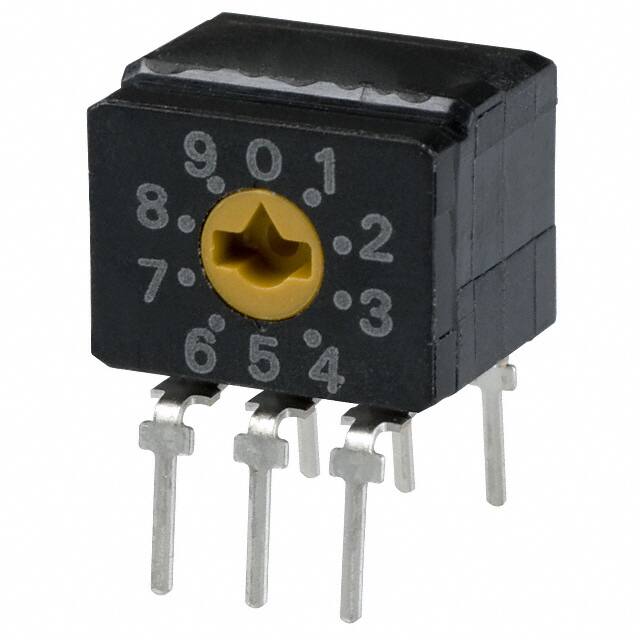

A6CV-16R Omron Electronics Inc-EMC Div
最低価格$6.2932257 在庫數 698
