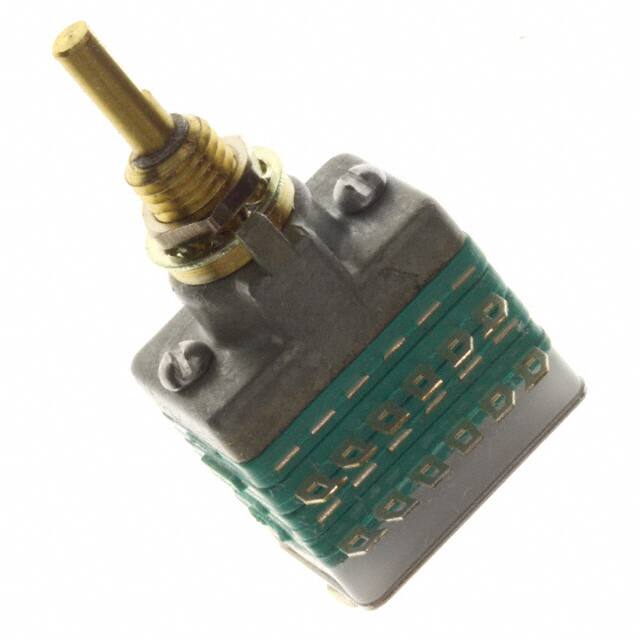

C4D0212S-A
-
Electroswitch
-
Rotary Switches
- SWITCH ROTARY 2-12POS 300MA 125V
Date Sheet
在庫數 39
- 1+: $36.29459
- 10+: $34.24018
- 100+: $32.30206
- 500+: $30.47364
- 1000+: $28.74872
小計金額 $36.29459
仕様 よくある質問
- Factory Lead Time:7 Weeks
- Contact Plating:Silver
- Mount:Panel
- Mounting Type:Panel Mount
- Contact Materials:Brass
- Voltage - Rated (AC):125V
- Voltage - Rated (DC):28V
- Series:C4
- Published:2006
- Part Status:Active
- Termination:Solder
- Number of Positions:2 ~ 12
- Current Rating (Amps):500mA
- Contact Finish:Silver
- Termination Style:Solder Lug
- Actuator Type:Flatted (6.35mm Dia)
- Panel Cutout Dimensions:Circular - 9.78mm Dia
- Contact Style:Shorting
- Number of Decks:2
- Contact Timing:Shorting (MBB)
- Index Stops:Adjustable
- Circuit per Deck:SP12T
- Depth Behind Panel:27.33mm
- Index Angle:30 °
- Number of Poles per Deck:1
- Angle of Throw:30°
- Actuator Length:12.70mm
- RoHS Status:RoHS Compliant
在庫數 39
- 1+: $36.29459
- 10+: $34.24018
- 100+: $32.30206
- 500+: $30.47364
- 1000+: $28.74872
小計金額 $36.29459
