B3F-1052

Omron Electronics Inc-EMC Div
Tactile Switches
Radial
OMRON ELECTRONIC COMPONENTS B3F1052 Tactile Switch, Non Illuminated, 24 V, 50 mA, 1.47 N, Solder, B3F Series
Date Sheet

在庫數 46000

小計金額 $0.00000

仕様よくある質問

Factory Lead Time：8 Weeks
Contact Plating：Gold, Silver
Mount：Through Hole
Mounting Type：Through Hole
Package / Case：Radial
Weight：250mg
Contact Materials：Gold, Silver
ElectricalLife：300000 cycles
Operating Temperature：-25°C~70°C
Packaging：Bulk
Series：B3F
Published：2001
JESD-609 Code：e4
Pbfree Code：yes
Part Status：Active
Moisture Sensitivity Level (MSL)：Not Applicable
Termination：PC Pins
ECCN Code：EAR99
Terminal Finish：Gold (Au)
Color：Yellow
Additional Feature：BAG PACKAGING
HTS Code：8536.50.90.40
Voltage - Rated DC：24V
Orientation：Straight
Depth：6mm
Current Rating：50mA
Termination Style：PC Pin
Actuator Type：Plunger for Cap
Circuit：SPST-NO
Switch Function：Off-Mom
Contact Resistance：100mOhm
Contact Current(DC)-Max：0.05A
Max Current Rating：50mA
Dielectric Withstanding Voltage：500VAC V
Number of Poles：1
Throw Configuration：SPST
Illumination：Non-Illuminated
Max Voltage Rating (DC)：24V
Mechanical Life：300,000 Cycles
Switch Type：KEYPAD SWITCH
Contact Current Rating：50mA
Operating Force：150gf
Illumination Type：Illuminated, Non-Illuminated
Actuator Orientation：Top Actuated
Contact (DC) Max Rating R Load：.05A@24VDC
Outline：6.00mm x 6.00mm
Contact Rating @ Voltage：0.05A @ 24VDC
PCB Hole Count：4
Contact Function：OFF-(ON)
Switch Travel：0.25mm
Actuator Height off PCB, Vertical：7.30mm
Number of Switches：1
Contact Bounce Time-Max：5ms
Height：7.3mm
Length：6mm
Width：6mm
Actuator Length：3mm
REACH SVHC：Unknown
RoHS Status：RoHS Compliant
Lead Free：Lead Free

在庫數 46000

小計金額 $0.00000

類似スペック製品

B3F-1052 Omron Electronics Inc-EMC Div
見積かごへ在庫數 46000

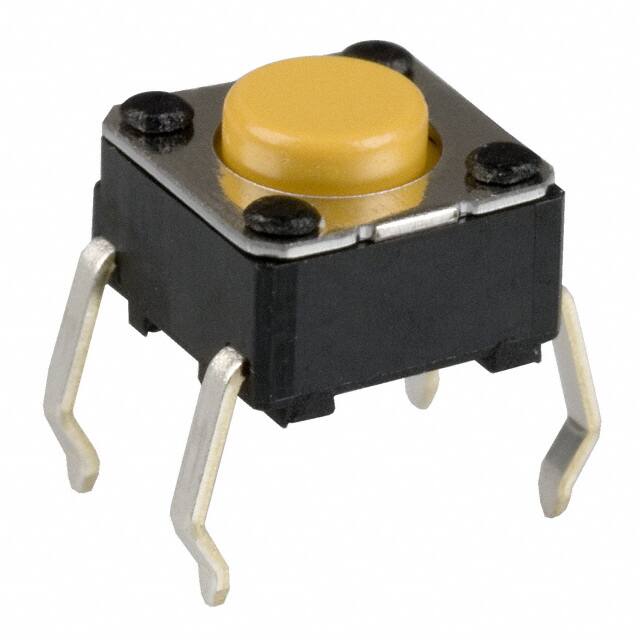

B3F-1002 Omron Electronics Inc-EMC Div
見積かごへ在庫數 16200

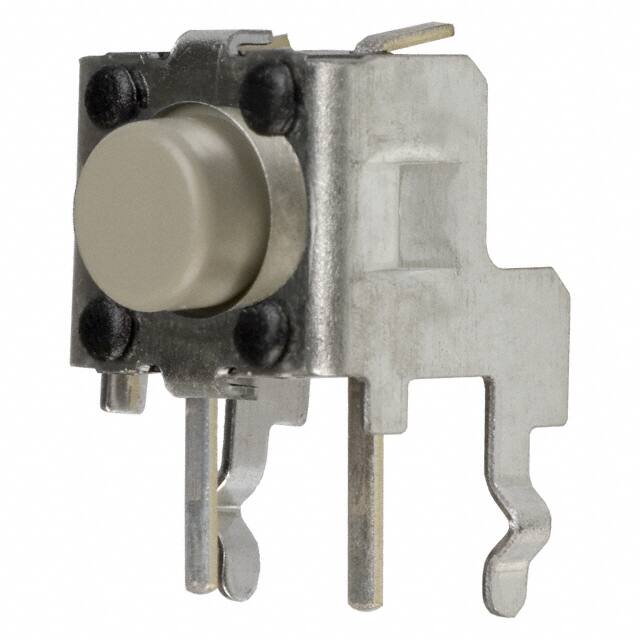

B3F-3122 Omron Electronics Inc-EMC Div
