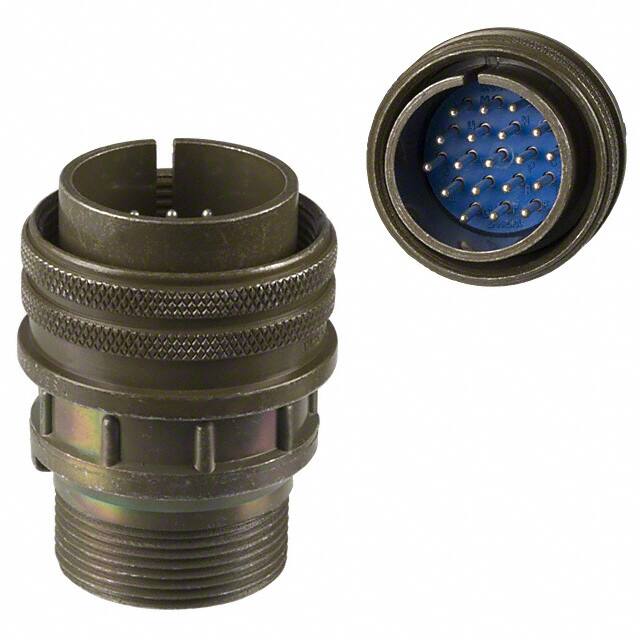

MS3106F22-14P

Amphenol Industrial Operations
Circular Connectors
Circular MIL Spec Connector 19P #16 PIN CONTACTS
Date Sheet

在庫數 6

1+： $47.99110
10+： $45.27462
100+： $42.71191
500+： $40.29425
1000+： $38.01344

小計金額 $47.99110

仕様よくある質問

Factory Lead Time：16 Weeks
Mounting Type：Cable, Free Hanging
Shell Material：Aluminum Alloy
Material：Ferrite
Insert Material：Neoprene
Body Material：Aluminium
Backshell Material, Plating：Aluminum Alloy, Olive Drab Chromate over Cadmium
Contact Finish Mating：Silver
Contact Materials：Copper Alloy
Operating Temperature：-55°C~125°C
Packaging：Bulk
Series：Military, MIL-DTL-5015
Published：2005
JESD-609 Code：e4
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder Cup
ECCN Code：EAR99
Connector Type：Plug, Male Pins
Number of Positions：19
Color：Olive Drab
Applications：Marine, Military
Gender：Male
HTS Code：8536.69.40.20
Fastening Type：Threaded
Voltage - Rated DC：700V
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Mixed Contacts：NO
Option：GENERAL PURPOSE
Current Rating (Amps)：13A
Orientation：N (Normal)
Shielding：Unshielded
Ingress Protection：Environment Resistant
Military Standard：YES
Shell Finish：Olive Drab Chromate over Cadmium
Shell Size - Insert：22-14
Voltage - Rated AC：714mV
Number of Contacts：19
Mating Information：MULTIPLE MATING PARTS AVAILABLE
Empty Shell：NO
Backshell Type：SOLID
Contact Style：Pin
Environmental Characteristics：CORROSION/ENVIRONMENT/MOISTURE/VIBRATION RESISTANT
Plating：Cadmium, Chromate
Wire Gauge (Max)：20 AWG
Wire Gauge (Min)：16 AWG
Body Plating：Cadmium
Cable Opening：0.740 (18.80mm)
Features：Backshell, Cable Clamp, Coupling Nut
Length：67.41mm
REACH SVHC：Unknown
Radiation Hardening：No
RoHS Status：Non-RoHS Compliant
Ratings：Environment Resistant
